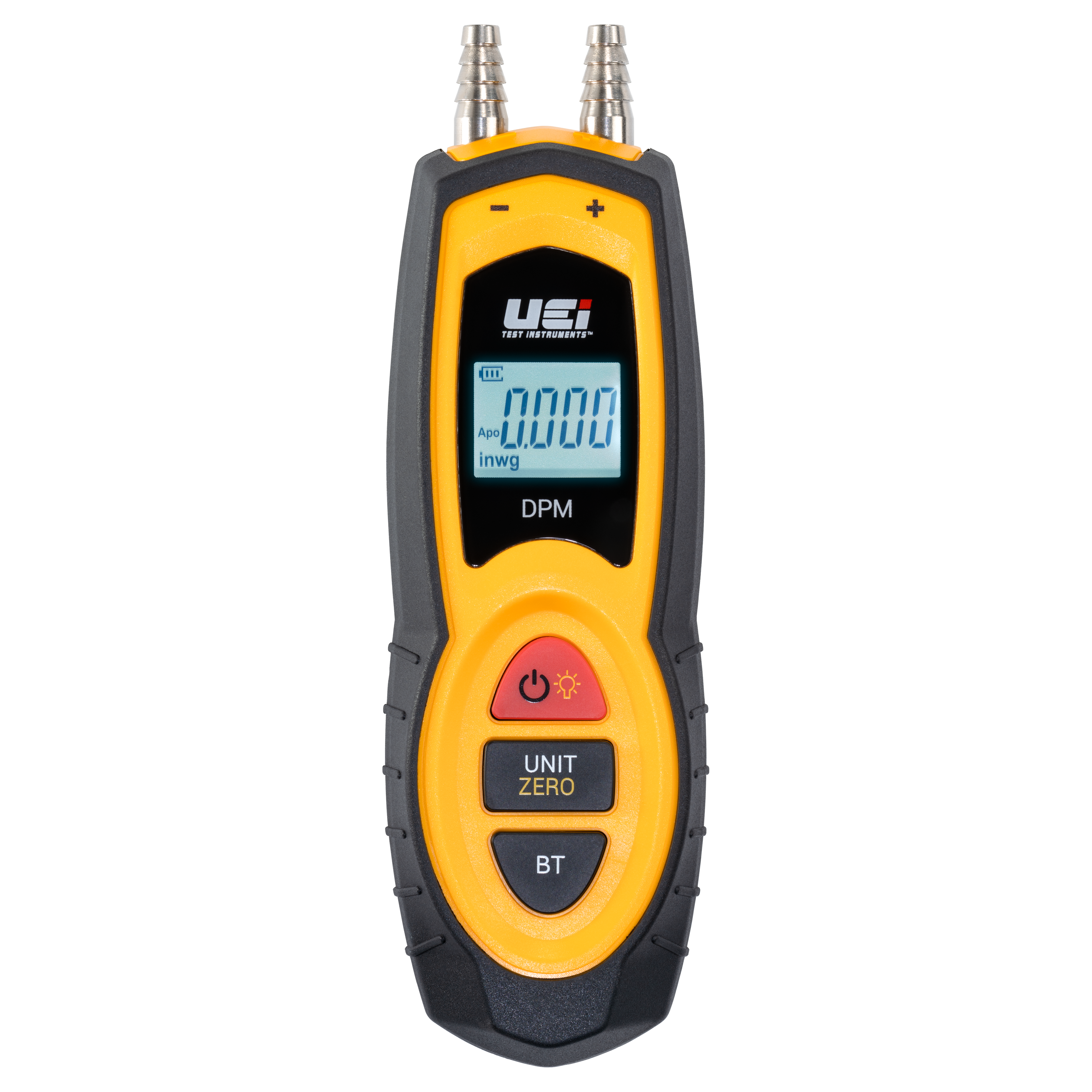

Wireless Differential Pressure Manometer
DPM

The DPM is a compact and easy-to-use differential manometer with wireless functionality. Easily view readings on display or wirelessly via the Free App,

UEI LINK.

The dual port design allows technicians to measure positive, negative, or differential pressure depending on hose configuration.

The DPM features a measurement range of -80 to 80 inwg, 6 different user selectable units, and a zero function.

The DPM also features a backlit display with battery level indication and a power saving Auto Power Off function, as well as protective rubber overmolding with a rear magnetic mount for handsfree operation.

DPM is backed by a 1-Year limited warranty.



Differential Pressure Yes
Auto Power Off Yes
Low Battery Warning Yes
Backlight Yes
Wireless Output Yes
Free App Available UEi Link
Protective Boot/Overmolding Yes
Zero Yes
Selectable Units Yes
Magnetic Mount Yes
Warranty 1-Year limited

Pressure Range ±80 inwg

CE Conformity Yes
RoHS Yes
FCC/IC Compliant Yes
REACH Compliant Yes

Manual (Eng) Available for download
Batteries AAA (3)
Pouch/Case Yes
Gas Valve Adapter Yes
Pressure Tubing Yes
Certificate of Conformity Yes
Optional - Replacement Accessories
AC319
AC519
SPAK1
AGVA
TF100
ASP1
BF102
