400A Dual Display Clamp Meter w/ Test Lead Storage

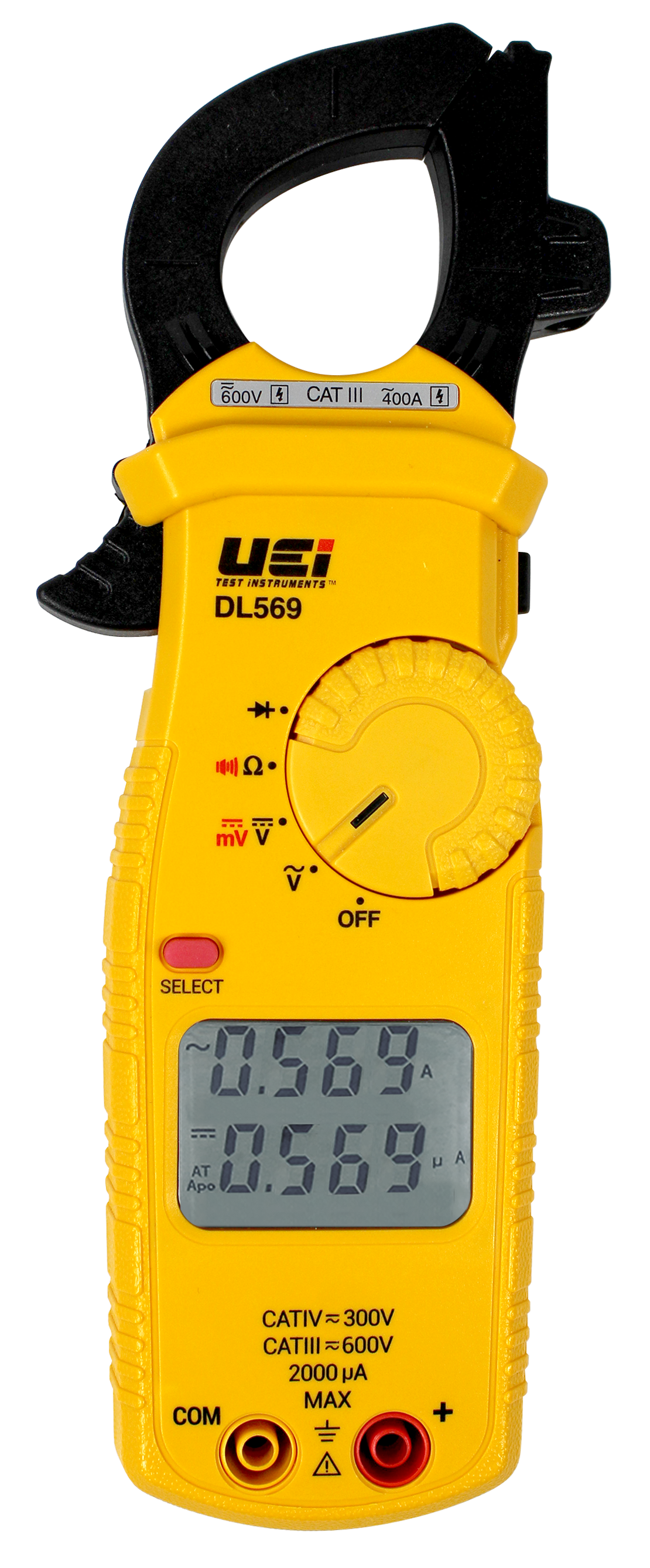

DL569

The DL569 is a dual display HVAC/R clamp meter recently upgraded with Capacitance and Microamps to add to existing functions AC/DC voltage, AC amps, and resistance. It includes test leads, a pair of alligator clips, a zippered pouch, and is backed by a 1-Year warranty.





Hold Yes
Ranging Auto
Auto Power Off Yes
Display Count 4000
Low Battery Warning Yes
Dual Display Yes
Magnetic Mount Optional
Warranty 1 Year limited
Audible and Visual Alerts Yes
Probe/Lead Storage Yes
Digital Yes

AC Current (Amps) 400A AC
AC Micro Current (Amps) 2000µA
DC Micro Current (Amps) 2000µA
AC Volts 750VAC
DC Volts 1000VAC
Resistance (Ohms) 40 MOhms
Diode Yes
Capacitance (Farads) 4000µF
Continuity Yes
AC Microvolts 400mV

UL Listed UL 61010-1: 2012
ETL Listed cETLus
CAT Rating CATIII 600V

Manual (Eng) Yes
Test Leads ATL55
Alligator Clips AAC3
Batteries AAA (2)
Pouch/Case AC560
Optional - Replacement Accessories
AC560
ATL57
ATL55
AMH2
ABP3
AAC3
AJW1
