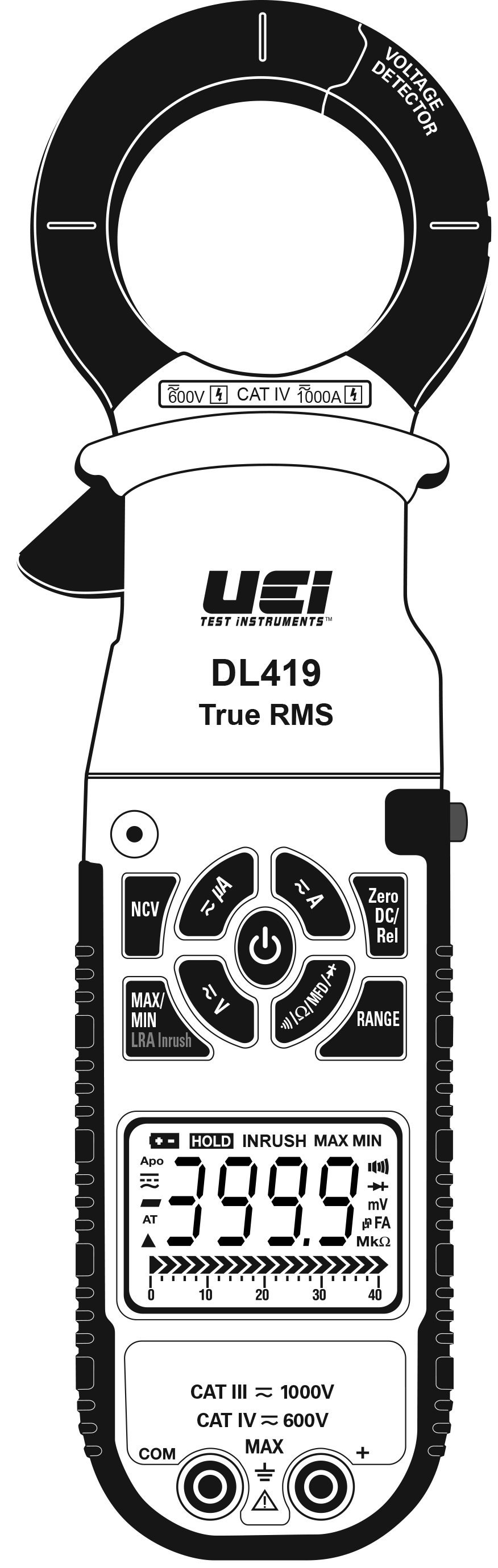

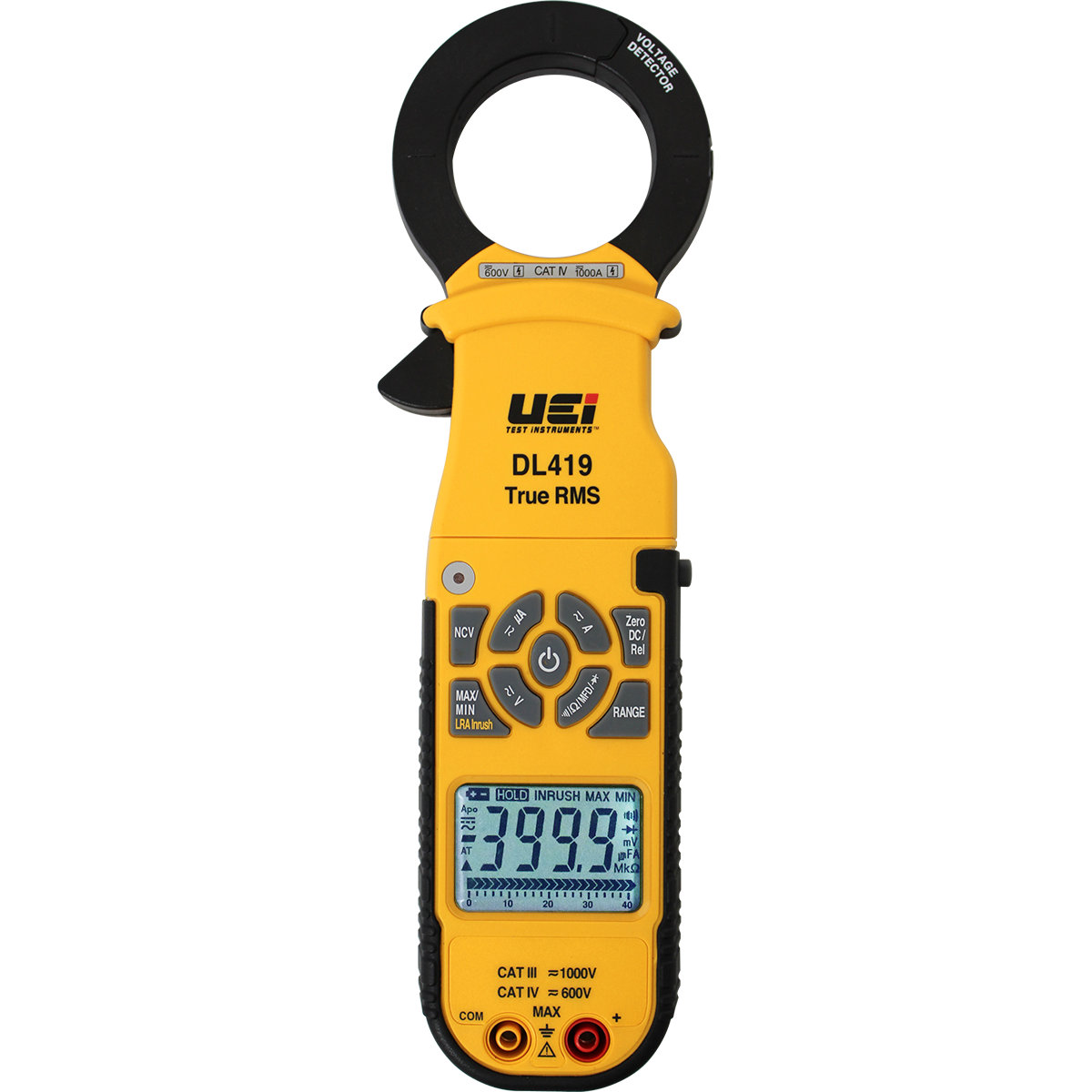

AC/DC 1000A True RMS Clamp Meter

DL419

1000A/!000V True RMS Industrial Clamp Meter

Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads

Backlight	Yes
Hold	Yes
Min/Max	Yes
Ranging	Auto/Man
Auto Power Off	Yes
Display Count	4000
Low Battery Warning	Yes
Relative Mode	Yes
DC Zero	Yes
Bar Graph	Yes
Magnetic Mount	Yes
Warranty	2-Year limited

TRMS	Yes
AC Current (Amps)	1000A
DC Current (Amps)	1000A
AC Micro Current (Amps)	2000µA
DC Micro Current (Amps)	2000µA
AC Volts	1000V
DC Volts	1000V
Resistance (Ohms)	40MΩ
Diode	Yes
Capacitance (Farads)	2000µF
Continuity	Yes
NCV Detection	Yes
LRA Inrush	Yes

Optional - Replacement Accessories

AAC

Slip-On Alligator Clip Set

AAC3

Screw-On Alligator Clip Set

ATL1

Modular Test Lead Tips - Fine Point Probe Set

ATL2

Modular Test Lead Tips - Alligator Clip Set

ATL3

Modular Test Lead Tips - Remote Grabber Clip Set

ATL301KIT

Deluxe Modular Test Lead Kit

ATL5

Modular Test Lead Tips - Back Probe Set

ATL55

Standard Right Angle Test Lead Set

ATL57

Silicone Right Angle Test Lead Set

ATL6

Modular Test Lead Tips - Piercing Test Clip Set

ATLBPK

Modular Back Probe Test Lead Kit

ATLCAP

Test Lead Protective Cap Shield Set

ATLTX

Modular Test Lead Set

ATTPC3

Pipe Clamp Probe, K-Type

ATTPC4

Compact Pipe Clamp Probe, K-Type

ATTEXT

K-Type Thermocouple 10 ft. Extension Wire

ATT100

Temperature Probe, K-Type Liquid 6 In

ATT39

Temperature Probe, K-Type DT300 Series Probe

ATT36

K-Type 8 In Surface probe with Handle

ATT29

Temperature Probe, K-Type Standard (Fiberglass coated)

ATT29A

Temperature Probe, K-Type Standard (Fluoroplastic Coated)

ATT29APACK

Temperature Probe, K-Type Standard (Fluoroplastic coated) (10 pack)
