Dual Display HVAC Clamp Meter
Zoom
Loading…

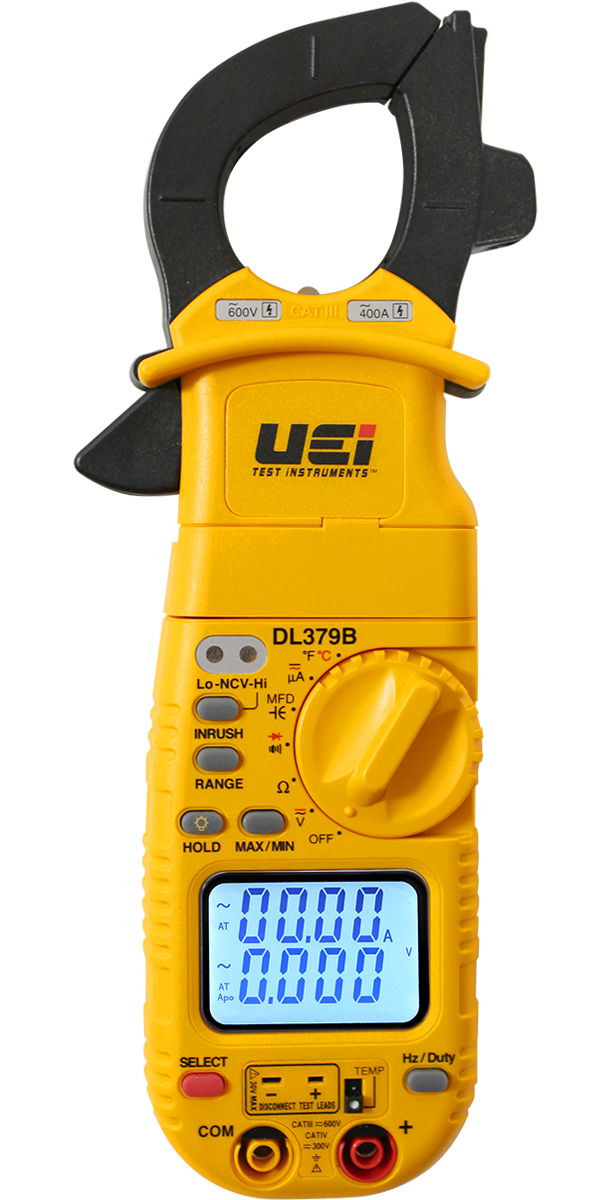

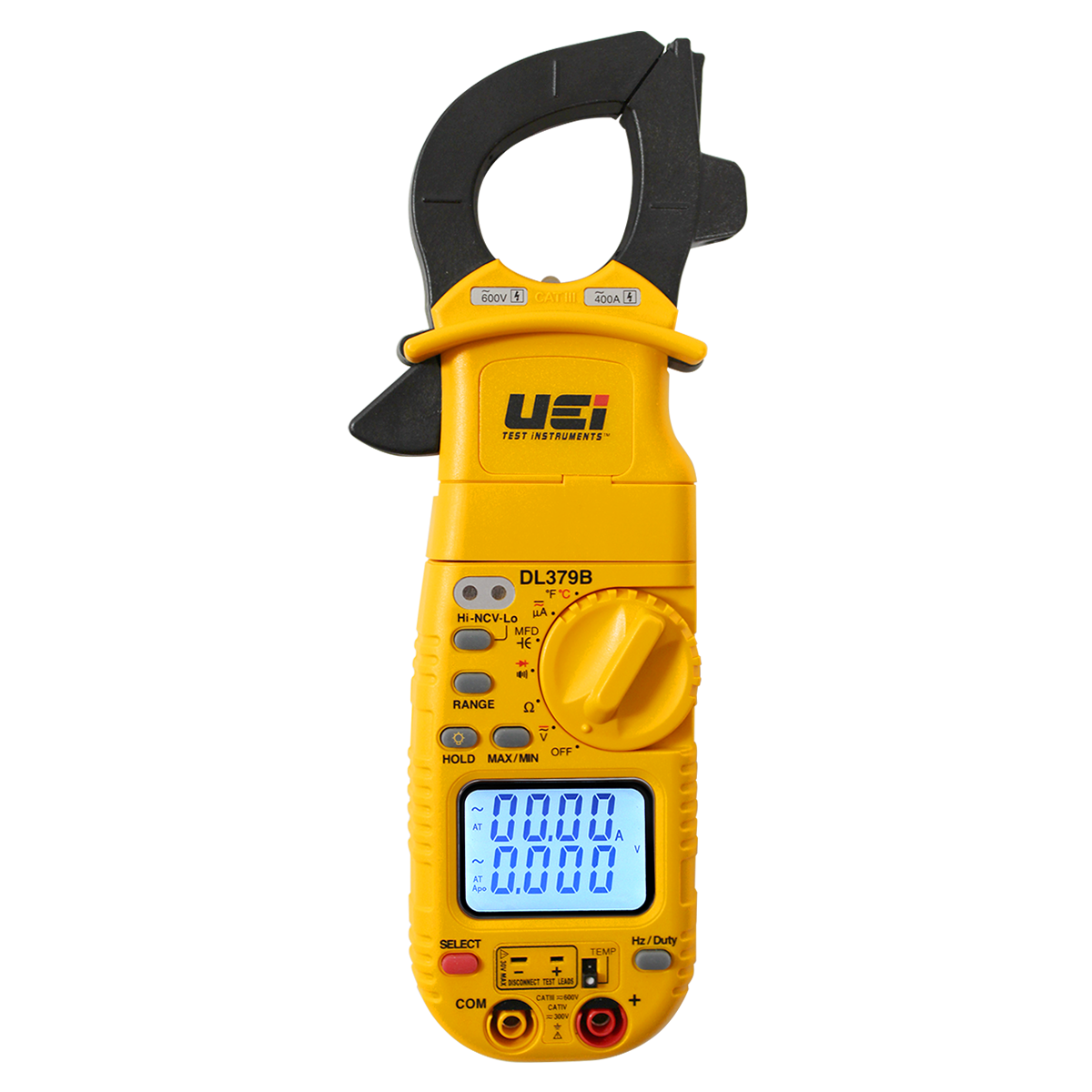

Dual Display HVAC Clamp Meter
DL379B
Digital HVAC Clamp meter with dual display, dual level NCV and CATIV 300V rating
Features
Features
Functions
Functions
Standards
Standards
Includes
Includes
Downloads
Downloads
Videos
Videos
Backlight
Yes
Hold
Yes
Min/Max
Yes
Ranging
Auto/Manual
Auto Power Off
Yes
Display Count
4000
Low Battery Warning
Yes
Dual Display
Yes
Worklight
Yes
Temperature Inputs
K-Type
Magnetic Mount
Yes
Warranty
3-year limited
Hi/Lo Alarm
Yes
K-Type Input
Yes
AC Current (Amps)
400A
AC Micro Current (Amps)
2000µA
DC Micro Current (Amps)
2000µA
AC Volts
750V
DC Volts
1000V
Resistance (Ohms)
40 MΩ
Diode
Yes
Capacitance (Farads)
2000µF
Temperature
-22°F to 752°F (-30˚ to 400˚C)
Frequency (Hertz)
9.999Hz - 199.9kHz
Duty Cycle (%)
Yes
Continuity
Yes
NCV Detection
Hi/Lo levels
UL Listed
cULus
IEC 61010
61010-2-32
CE Conformity
Yes
CAT Rating
CATIV 300V/CATIII 600V
Manual (Eng)
Yes
Test Leads
ATL55
Batteries
AAA (2)
Temperature Probe
ATT29
Pouch/Case
AC560
Data Sheet - English
Manual - English
Manual - Spanish
Manual - French
Hi-Res picture

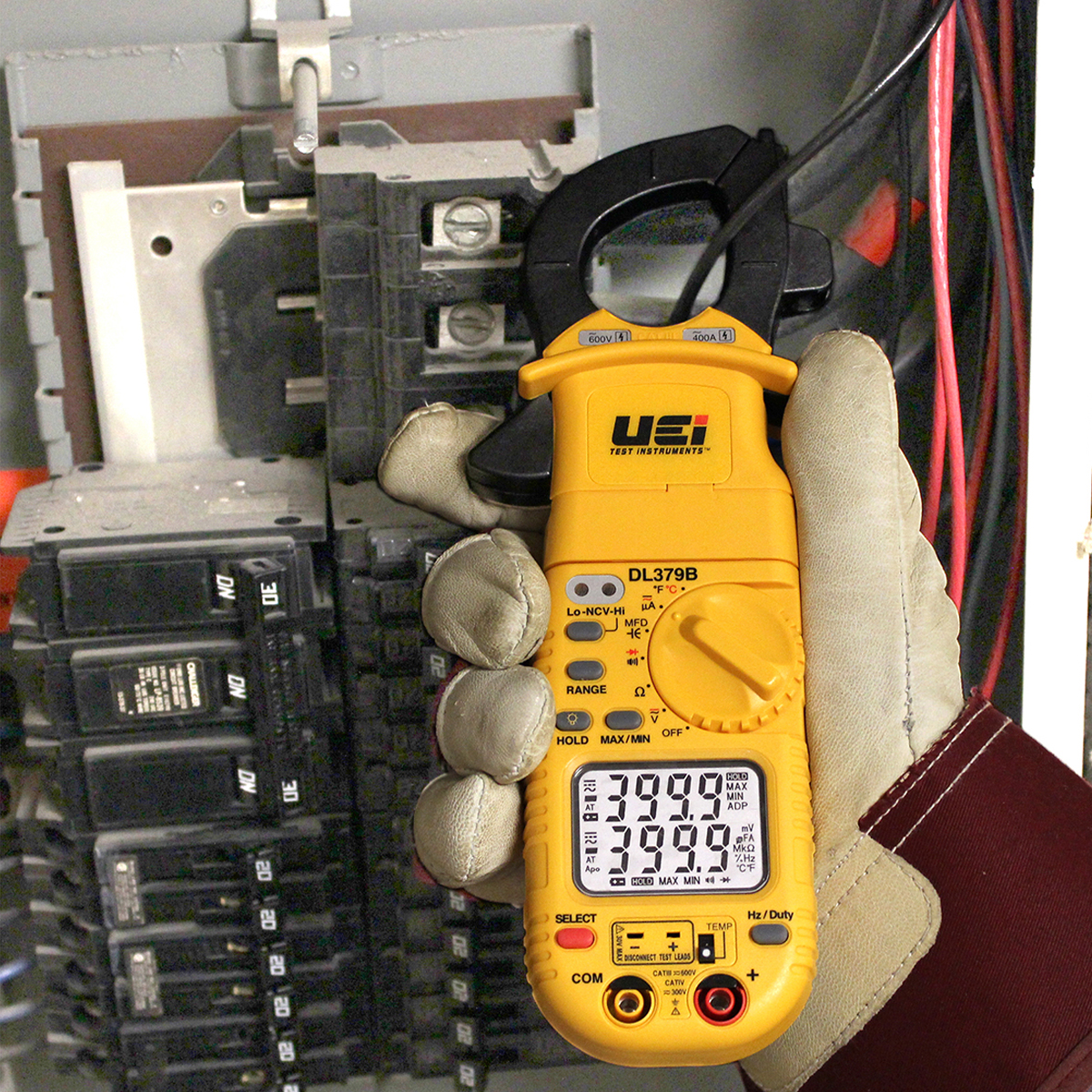

Application Picture

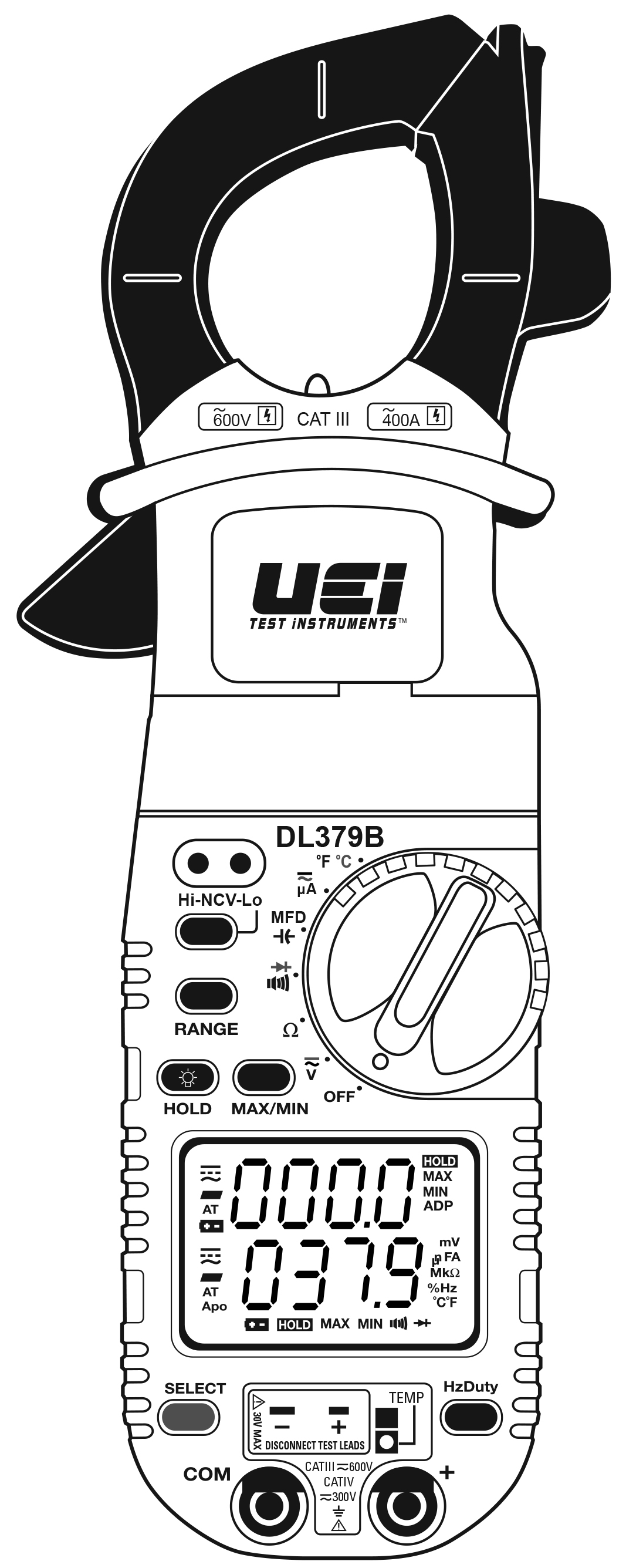

Line Drawing
Video 1
Loading…
Optional - Replacement Accessories

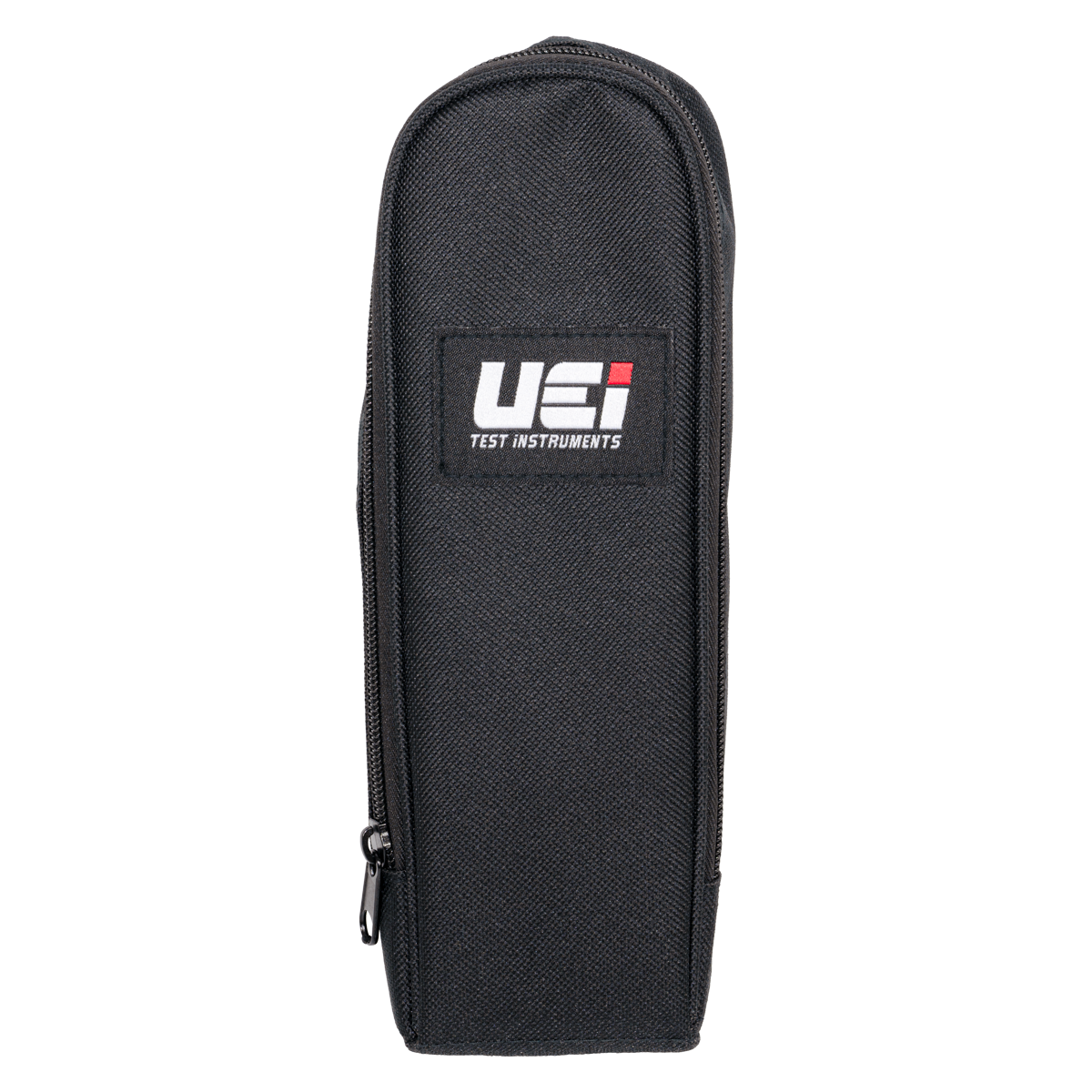

AC560
Clamp Meter Soft Carrying Case

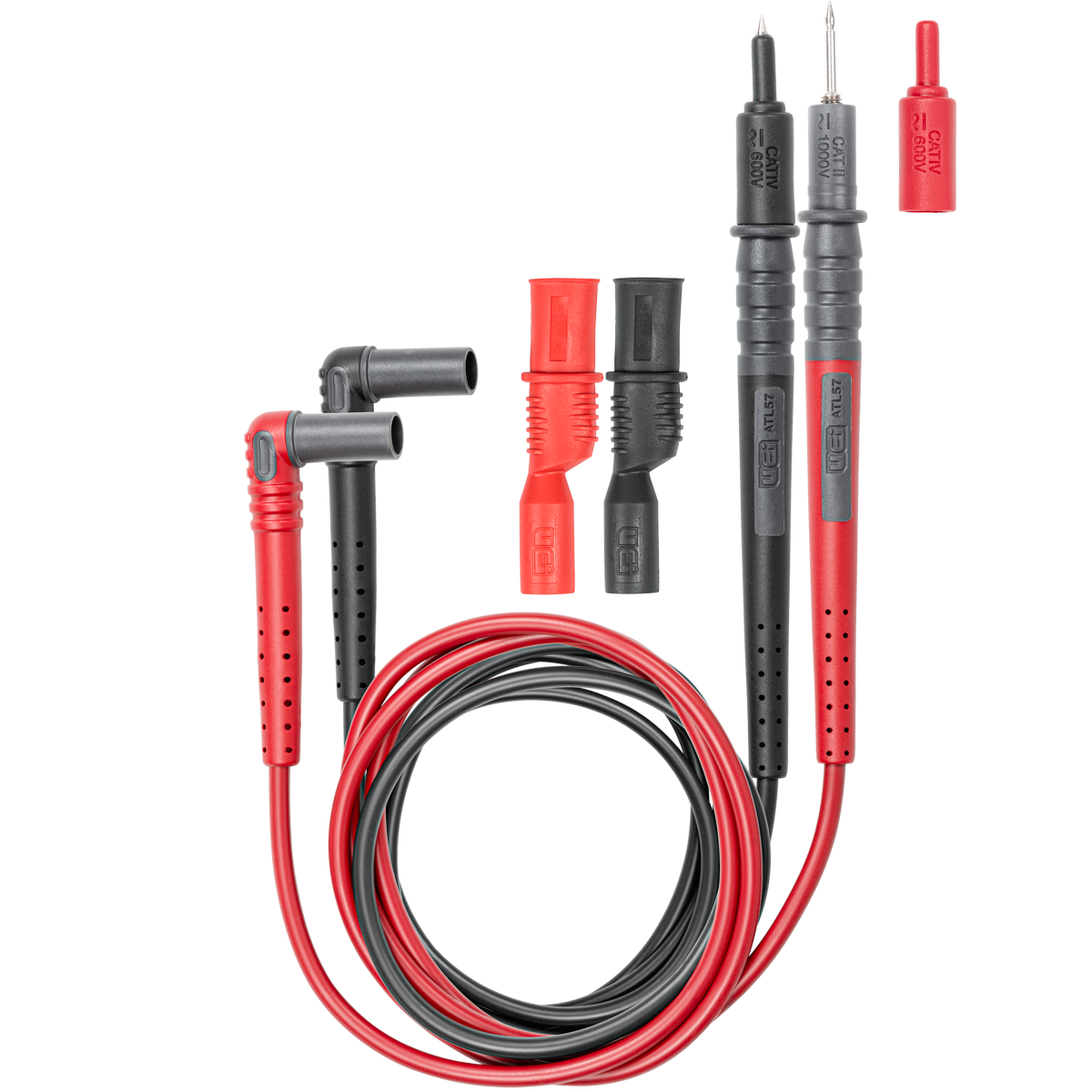

ATL57
Silicone Right Angle Test Lead Set
ATT29
Temperature Probe, K-Type Standard (Fiberglass coated)

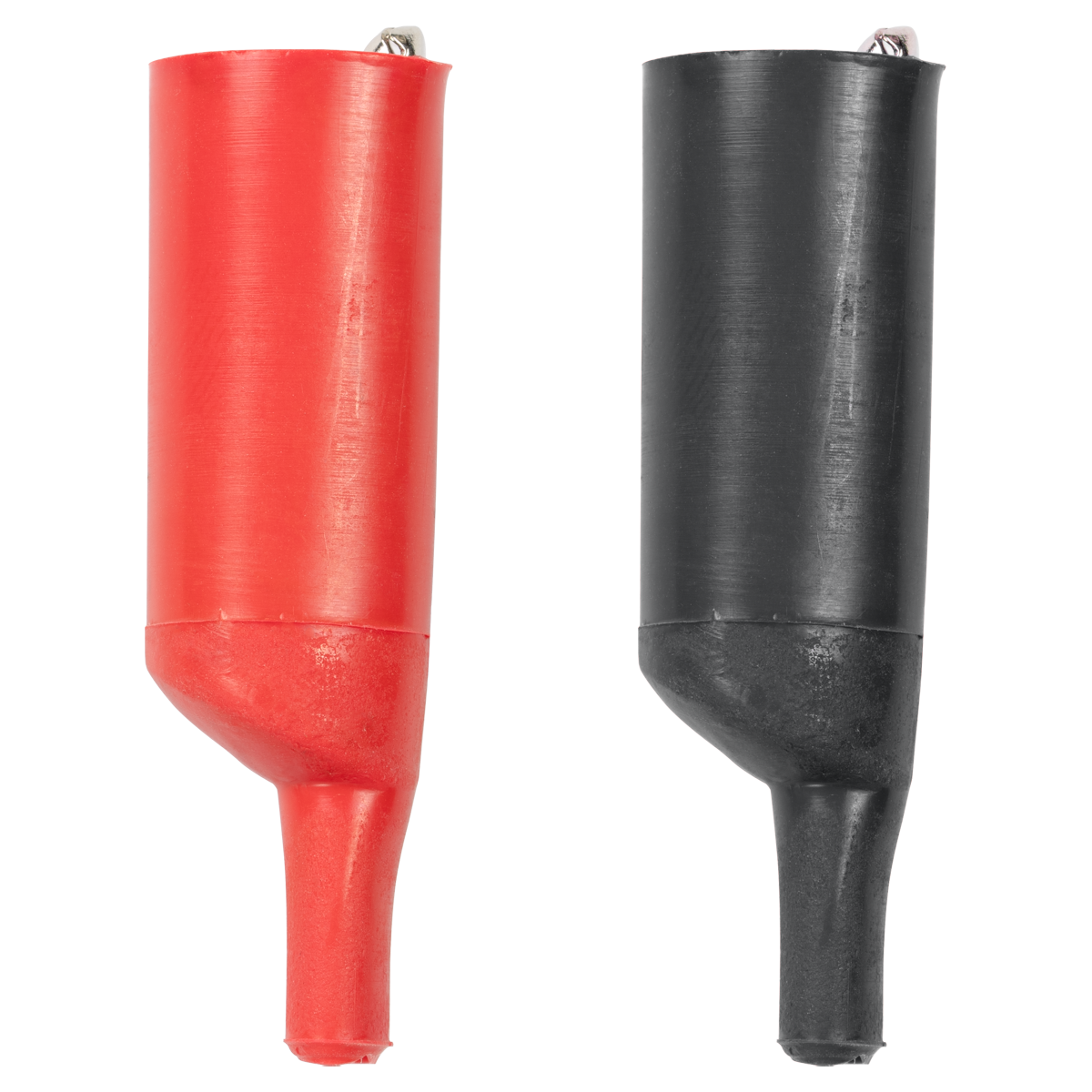

AAC
Slip-On Alligator Clip Set

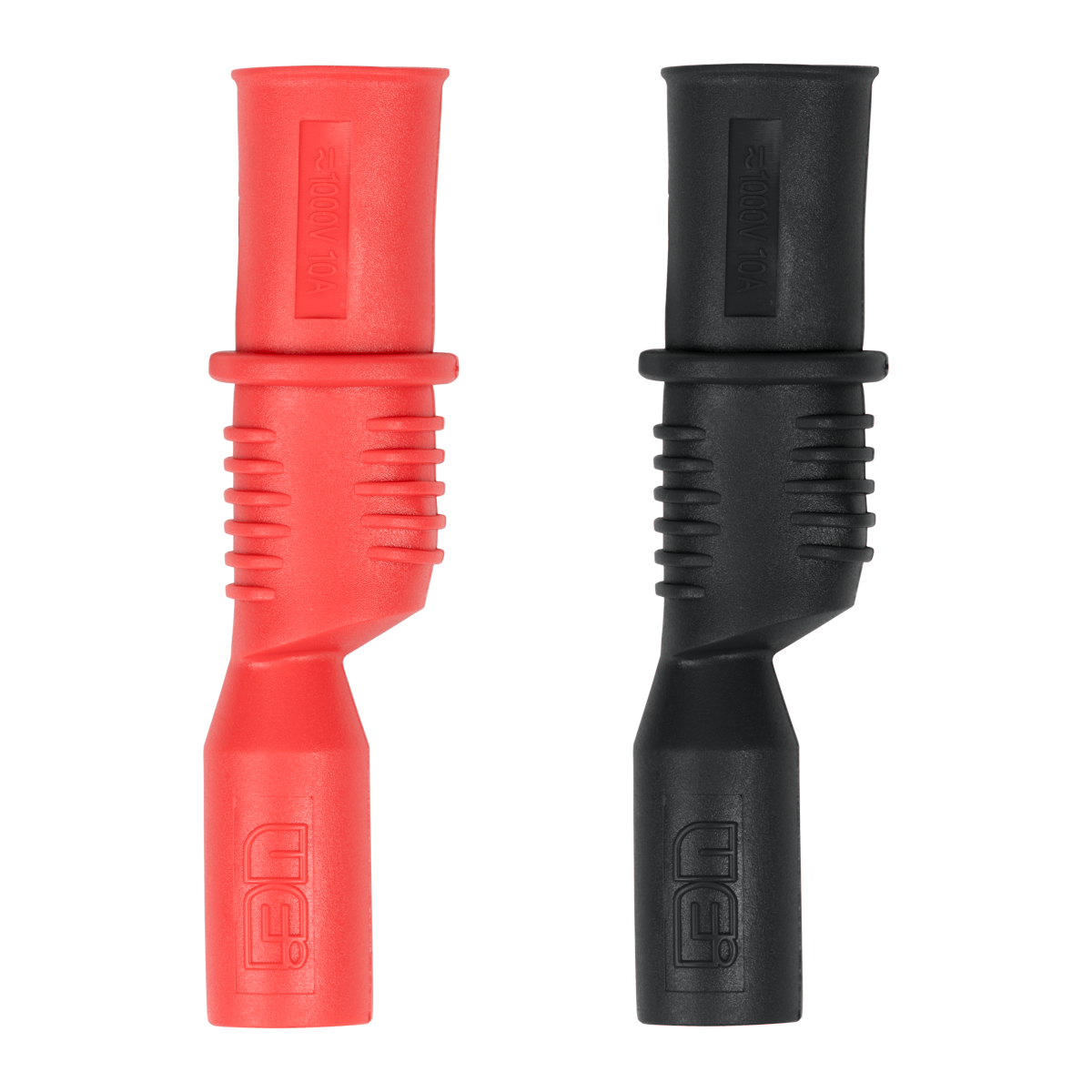

AAC3
Screw-On Alligator Clip Set

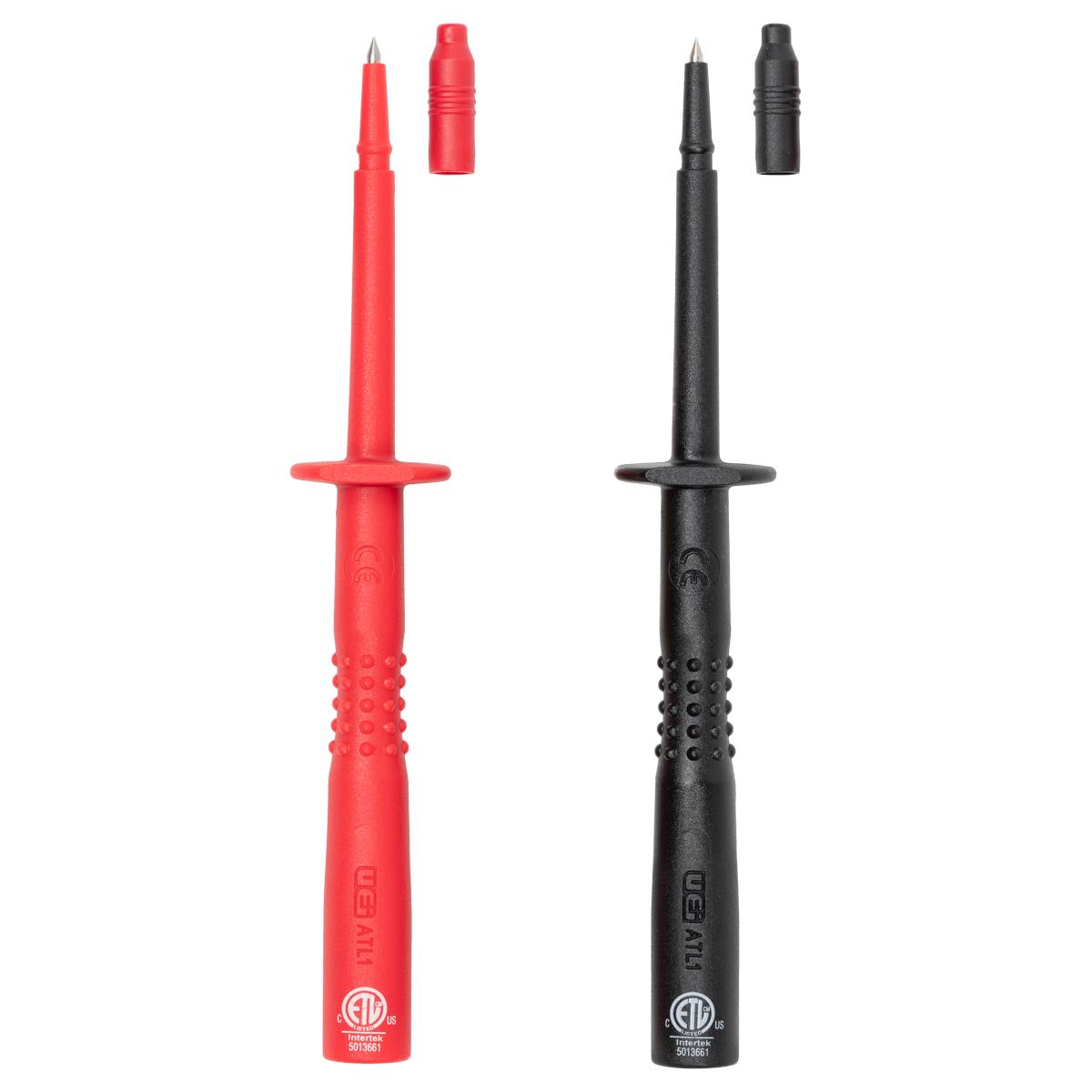

ATL1
Modular Test Lead Tips - Fine Point Probe Set

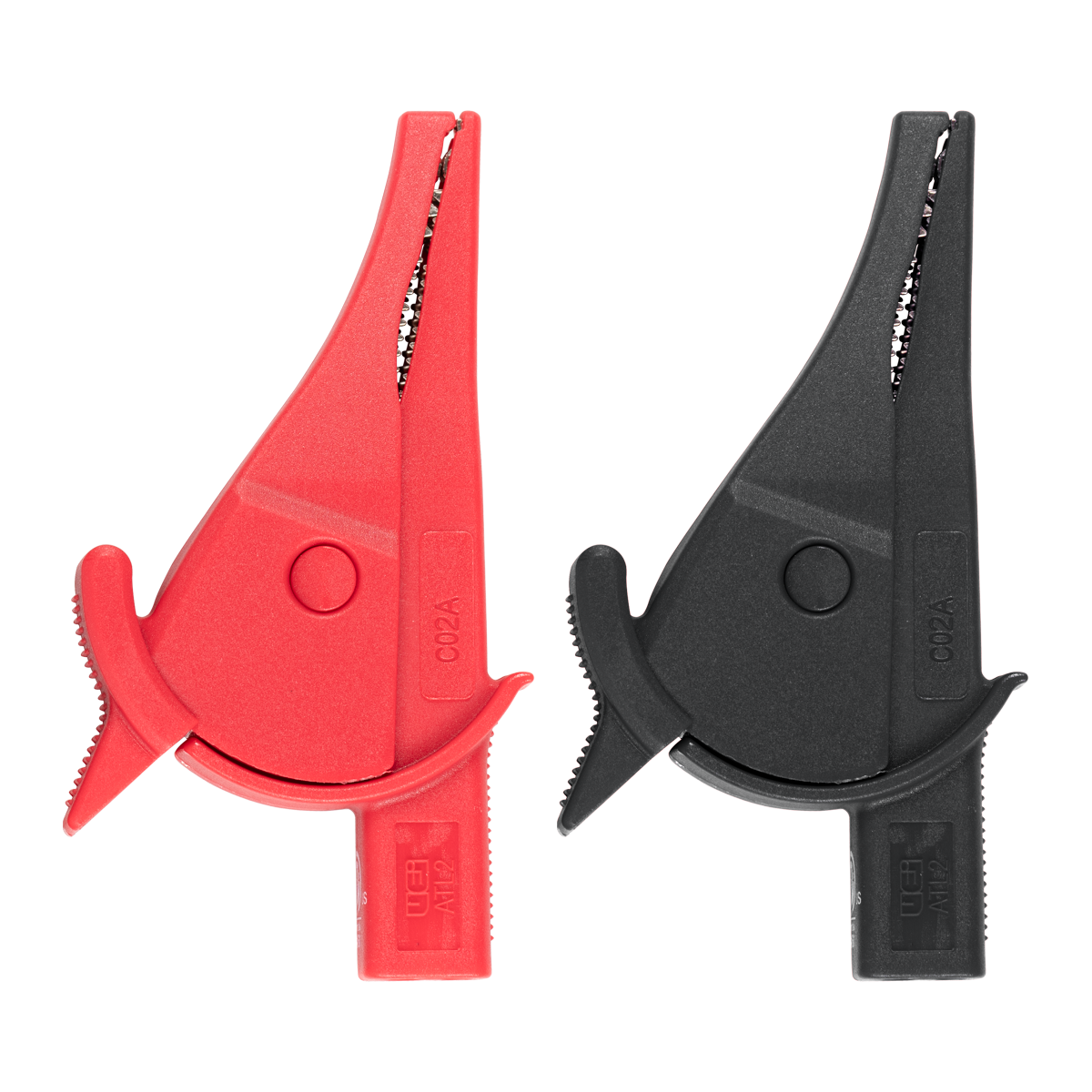

ATL2
Modular Test Lead Tips - Alligator Clip Set

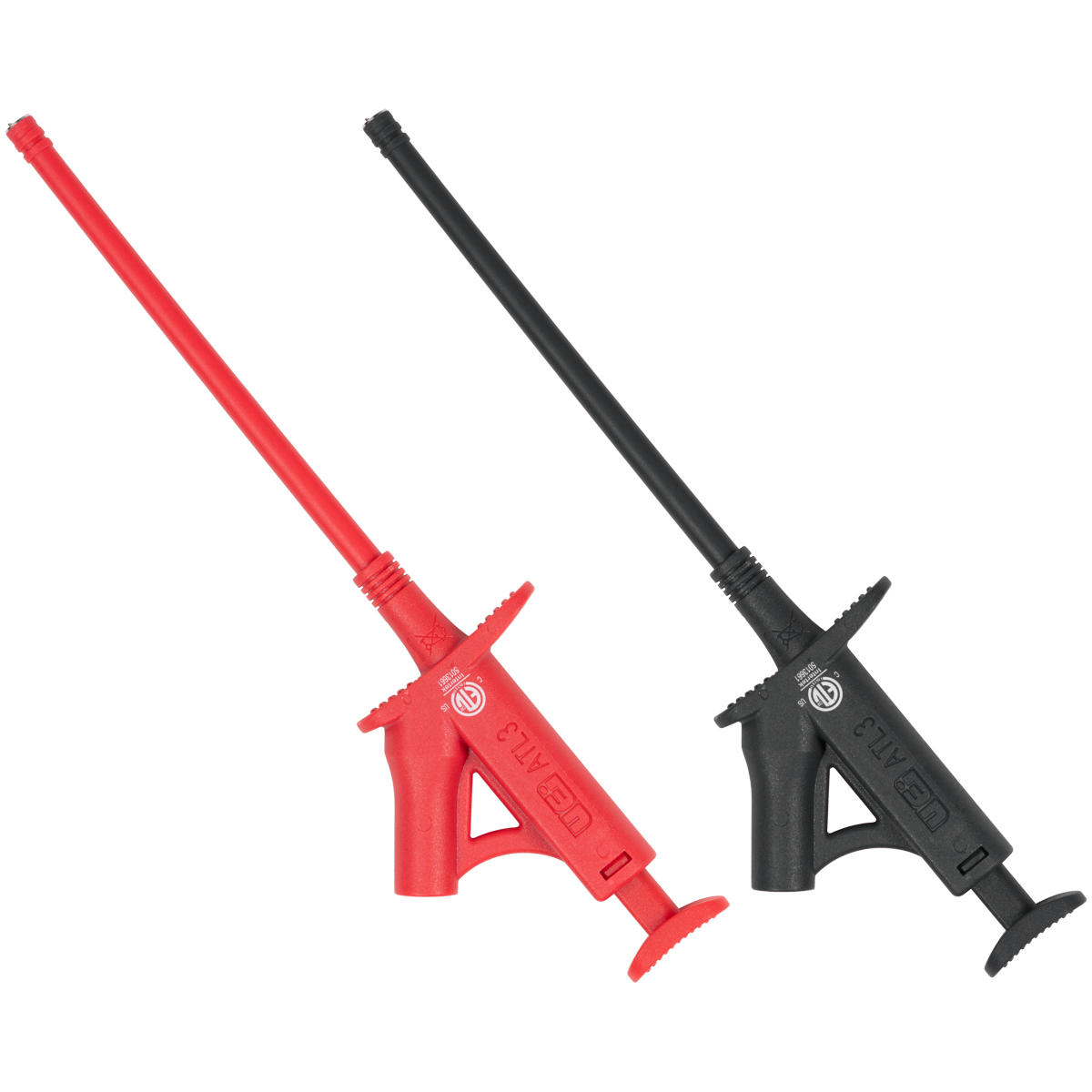

ATL3
Modular Test Lead Tips - Remote Grabber Clip Set

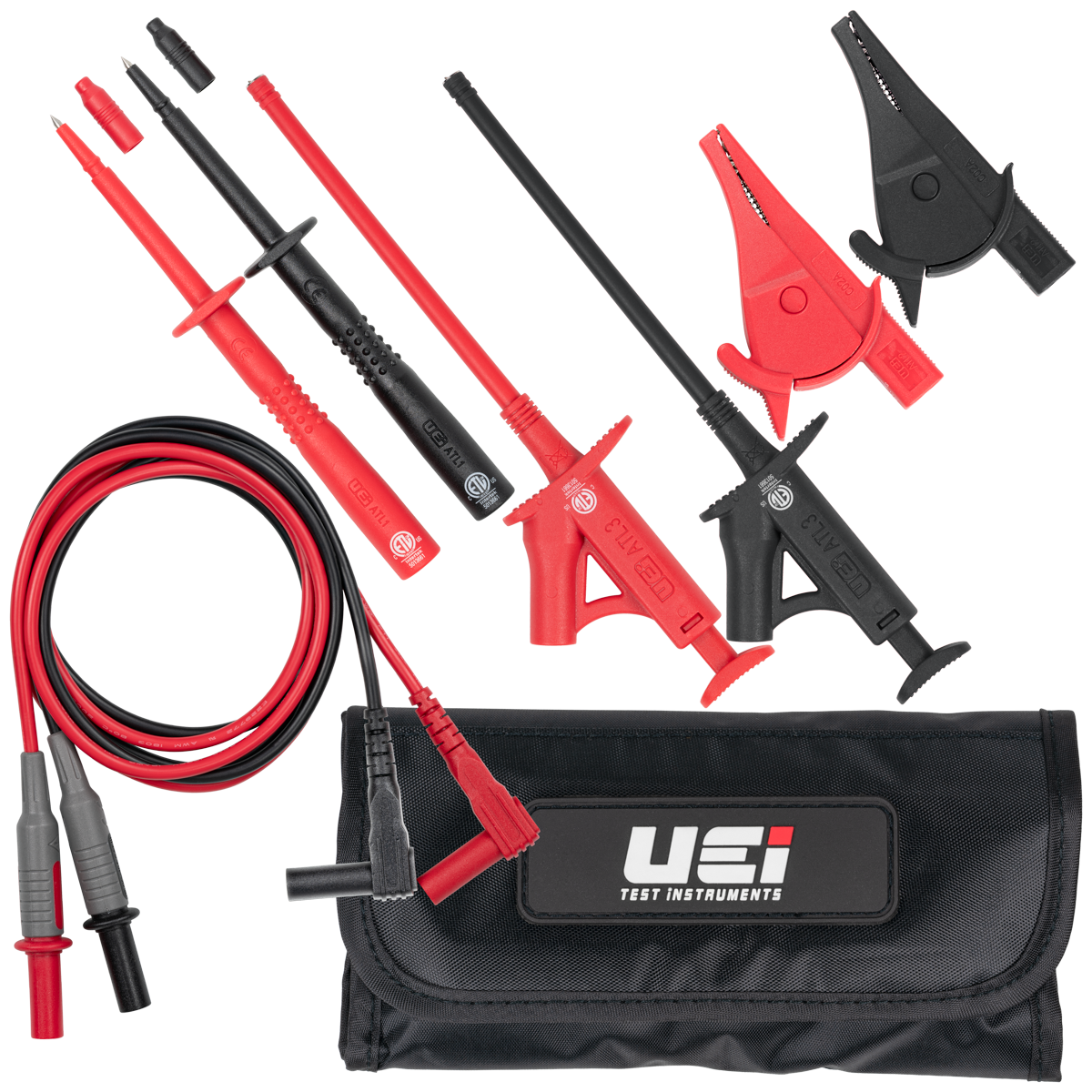

ATL301KIT
Deluxe Modular Test Lead Kit

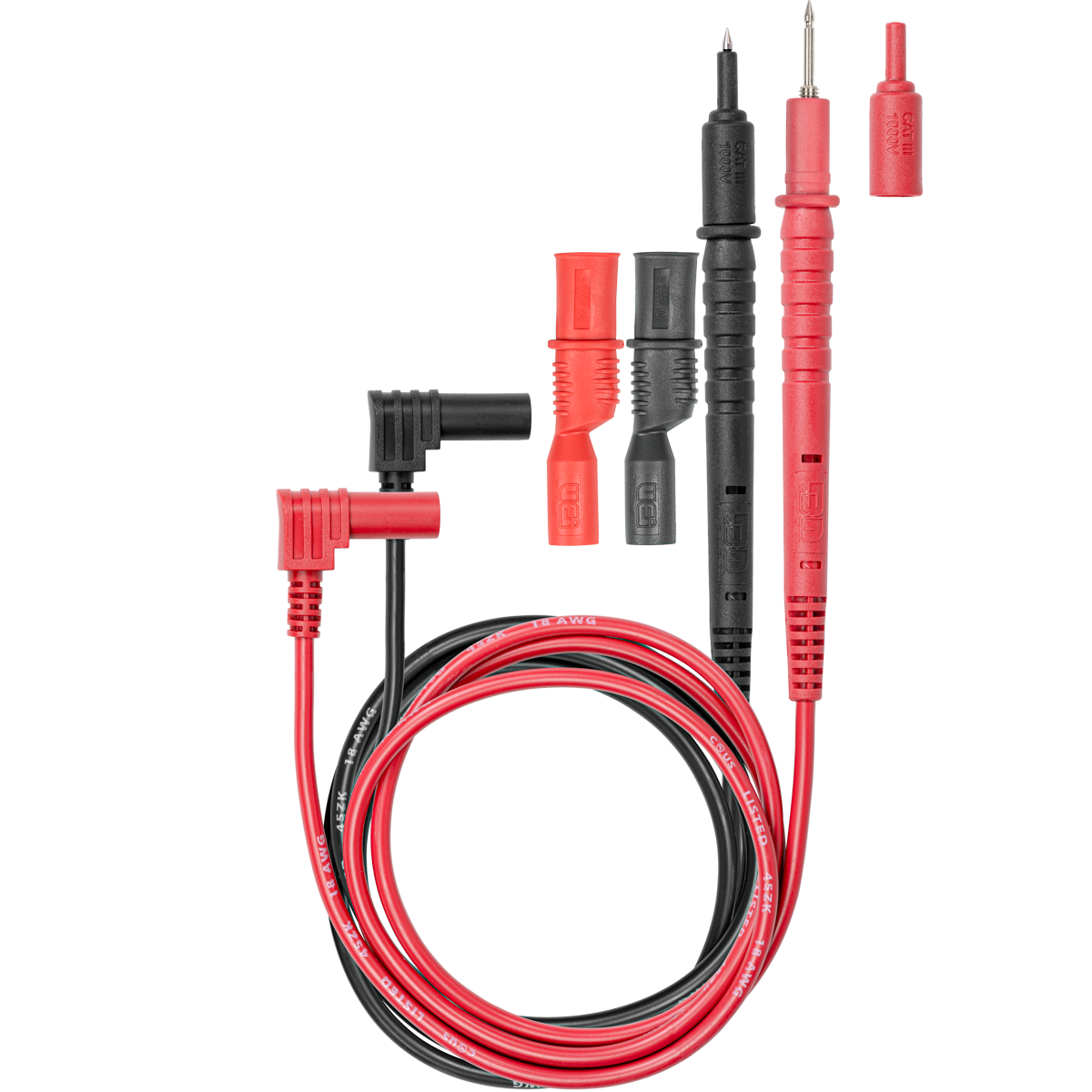

ATL55
Standard Right Angle Test Lead Set

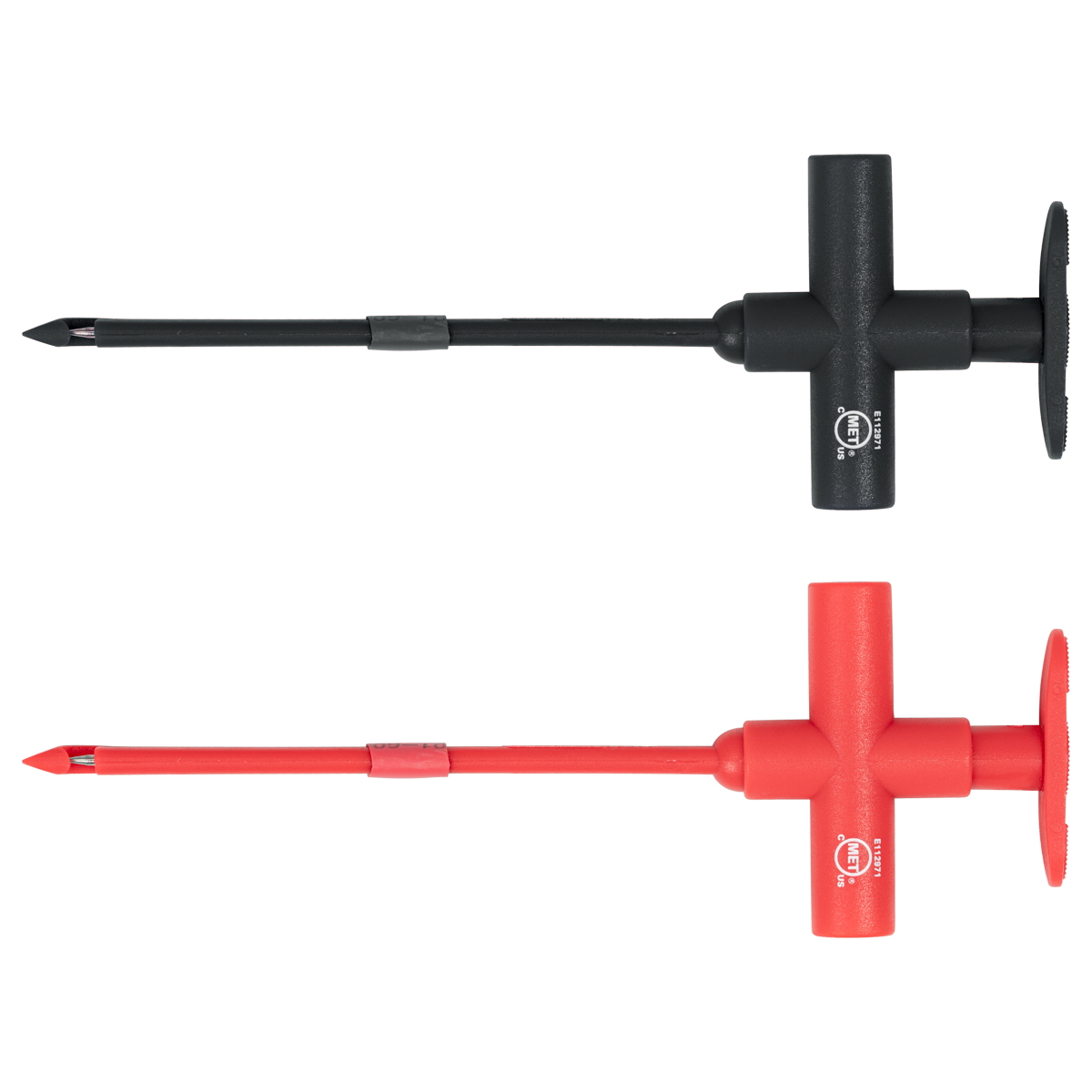

ATL6
Modular Test Lead Tips - Piercing Test Clip Set

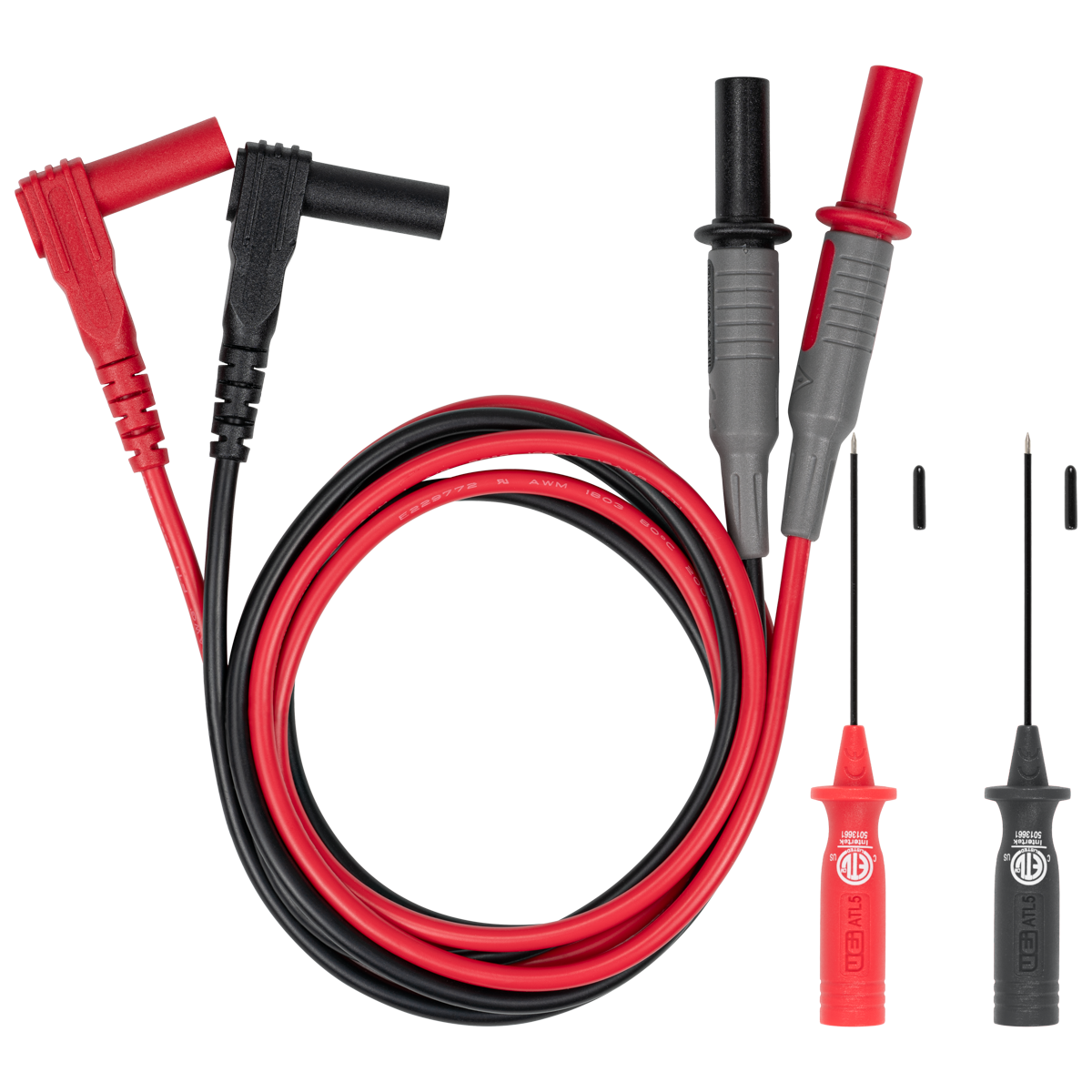

ATLBPK
Modular Back Probe Test Lead Kit

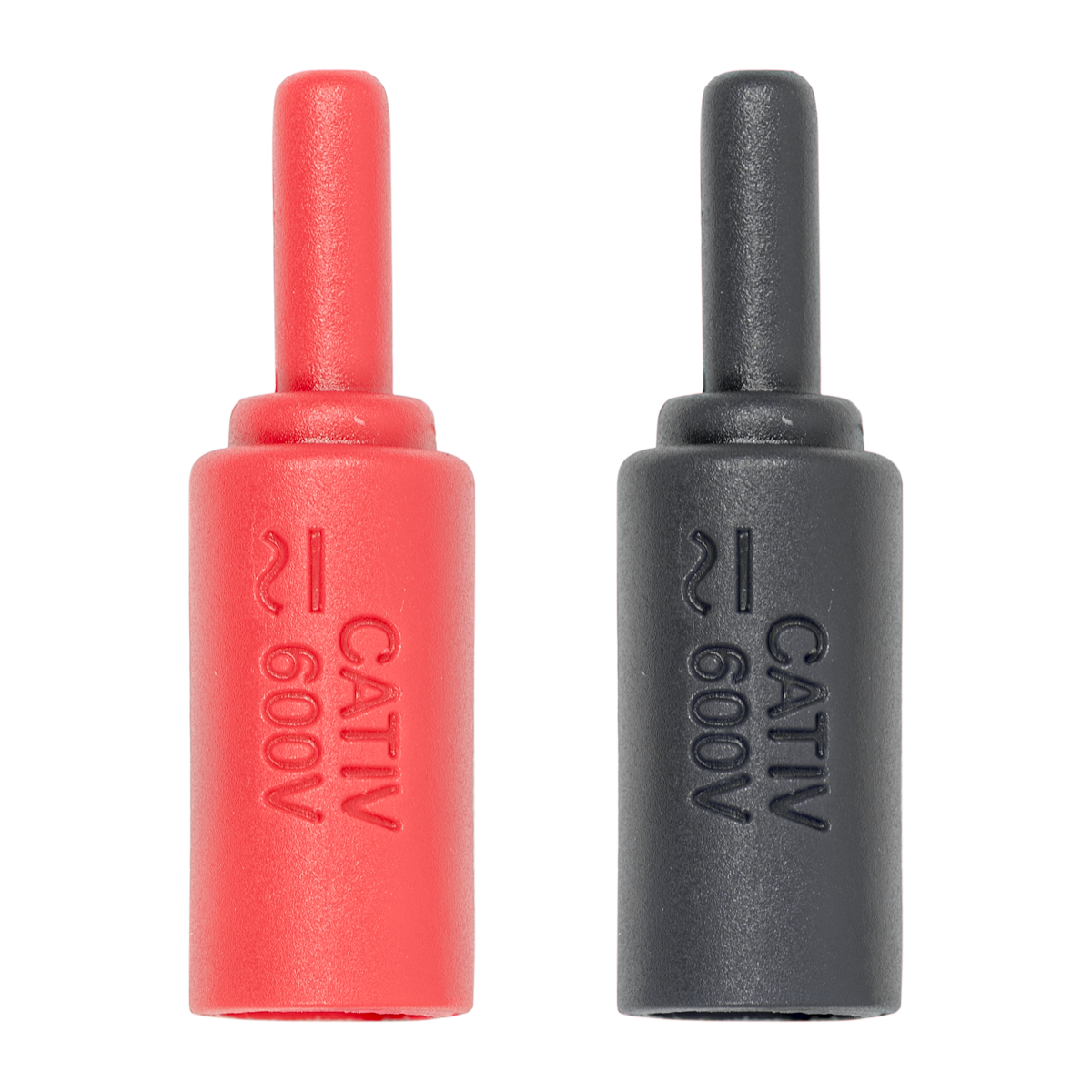

ATLCAP
Test Lead Protective Cap Shield Set

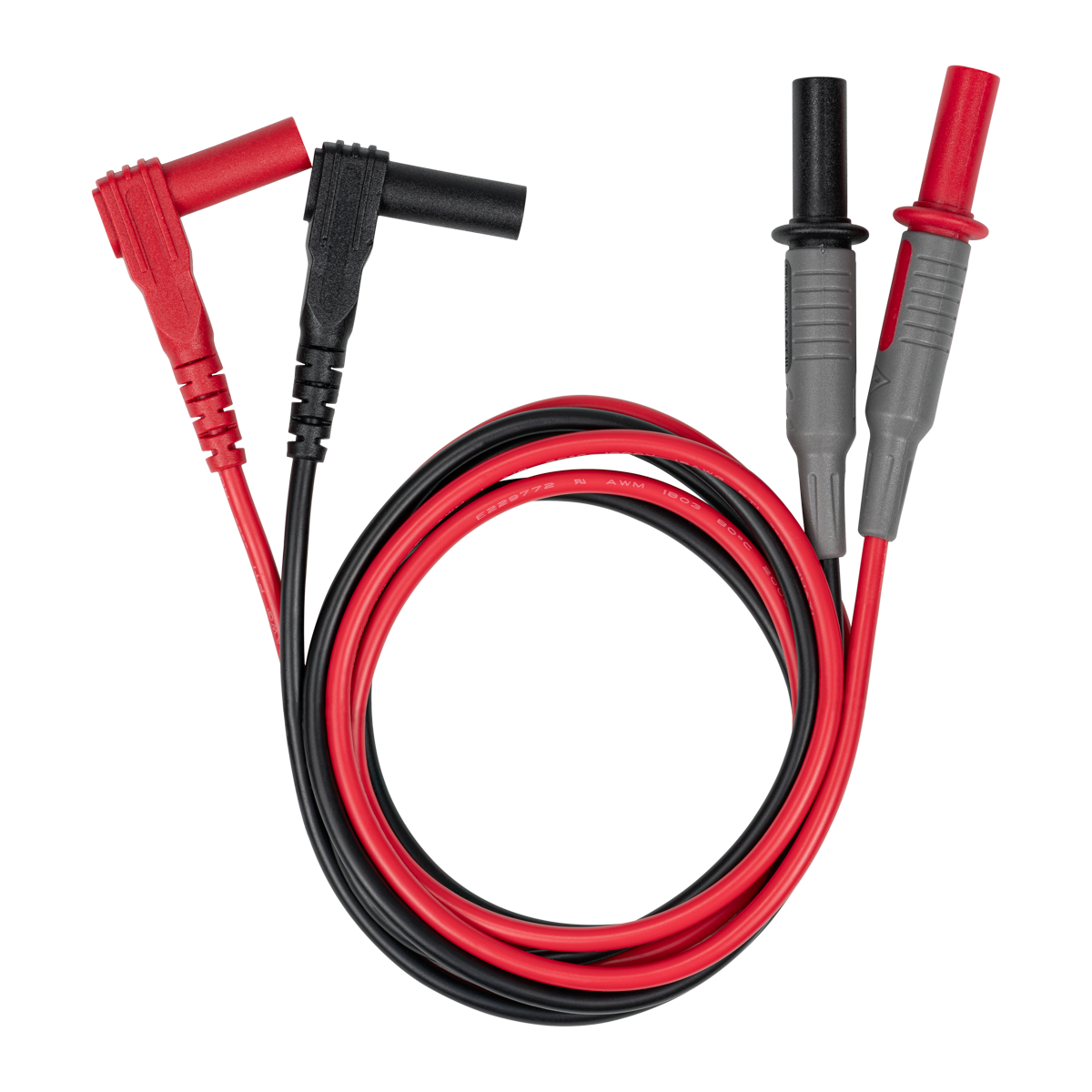

ATLTX
Modular Test Lead Set
ATT100
Temperature Probe, K-Type Liquid 6 In
ATT29A
Temperature Probe, K-Type Standard (Fluoroplastic Coated)
ATT29APACK
Temperature Probe, K-Type Standard (Fluoroplastic coated) (10 pack)
ATT39
Temperature Probe, K-Type DT300 Series Probe
ATTPC3
Pipe Clamp Probe, K-Type
ATTPC4
Compact Pipe Clamp Probe, K-Type
ATT36
K-Type 8 In Surface probe with Handle
AC519
Soft Carrying Case (13 inch x 6 inch x 2.75 inch)

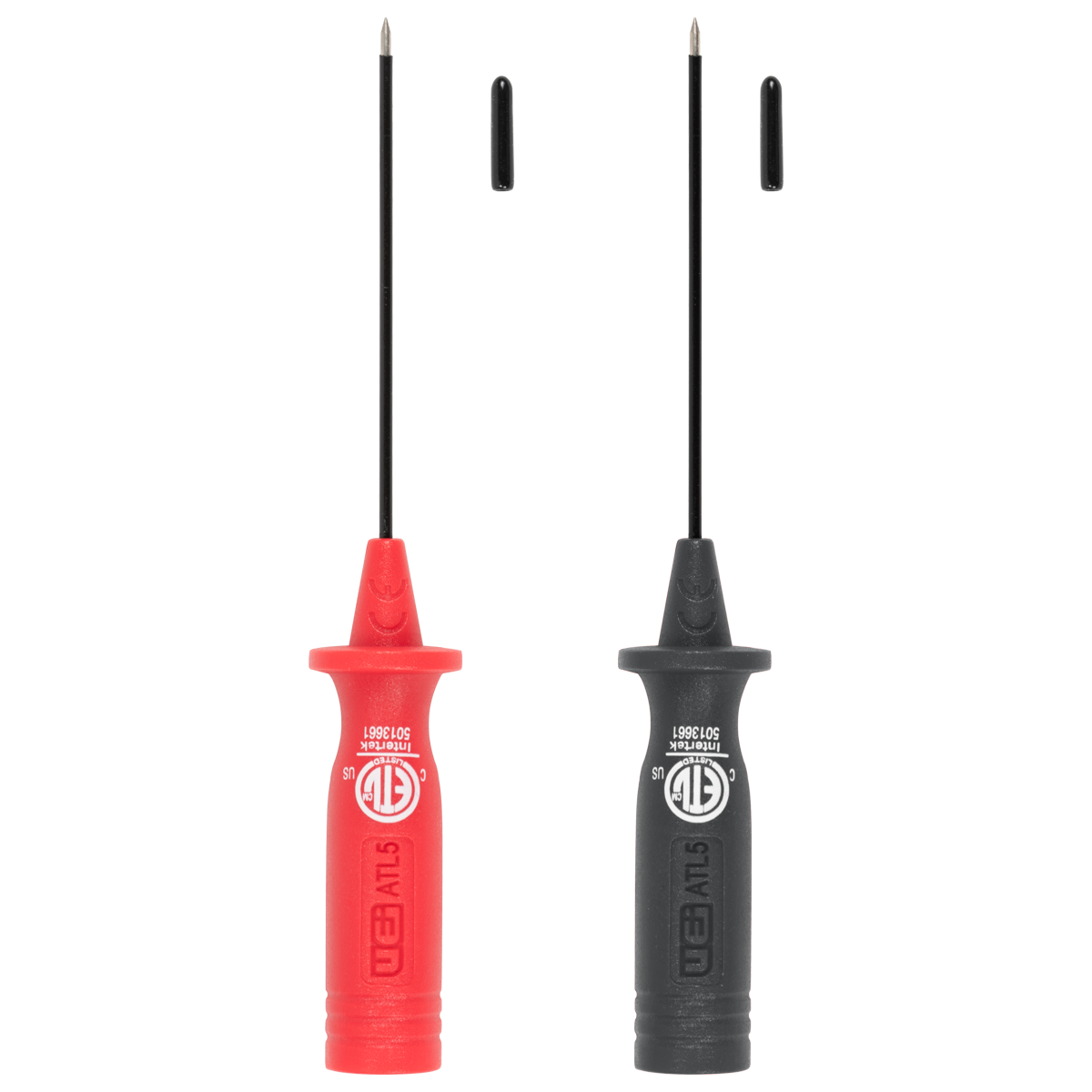

ATL5
Modular Test Lead Tips - Back Probe Set

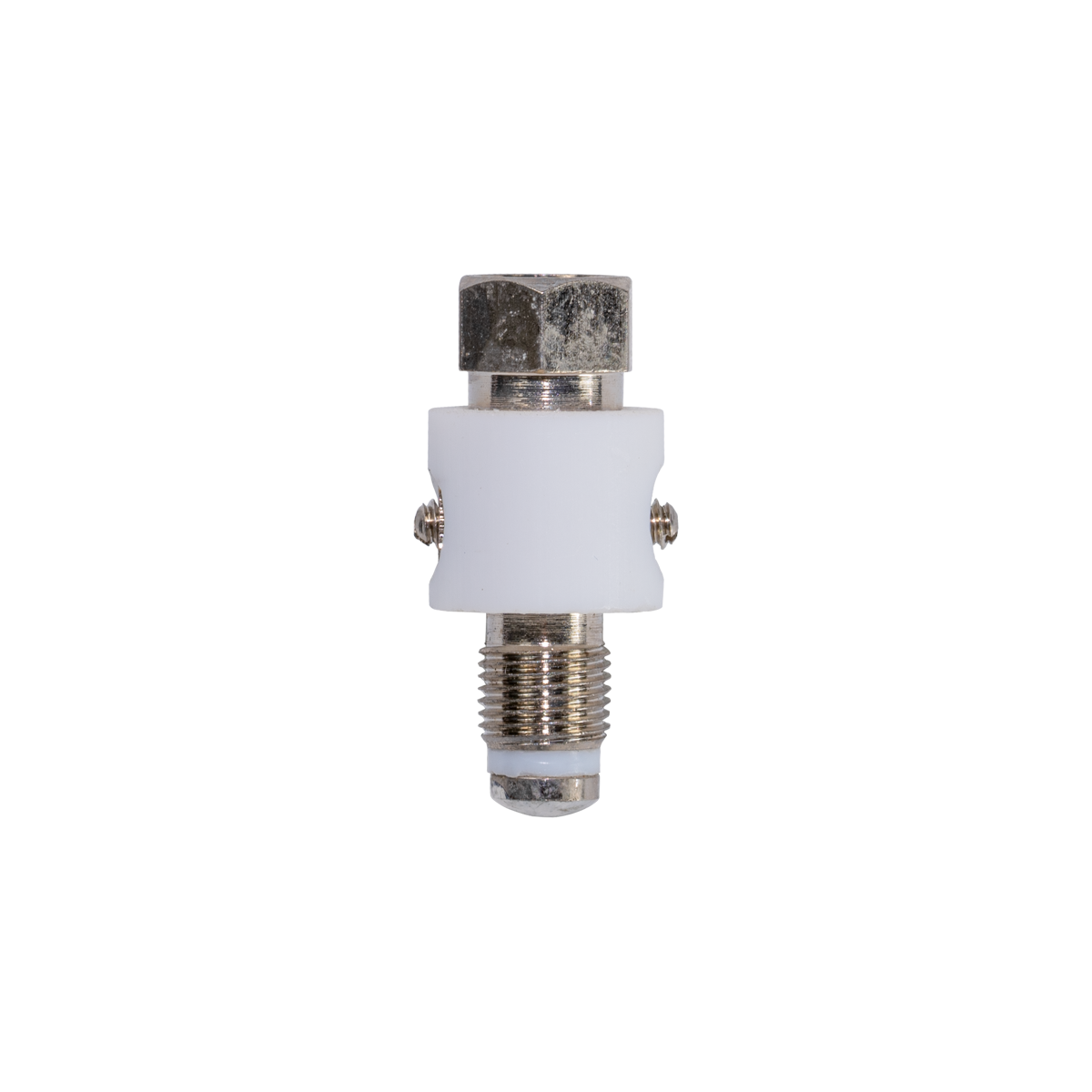

ATHA1
Gas Valve Thermocouple Adapter
