*UPGRADED TO C165+*

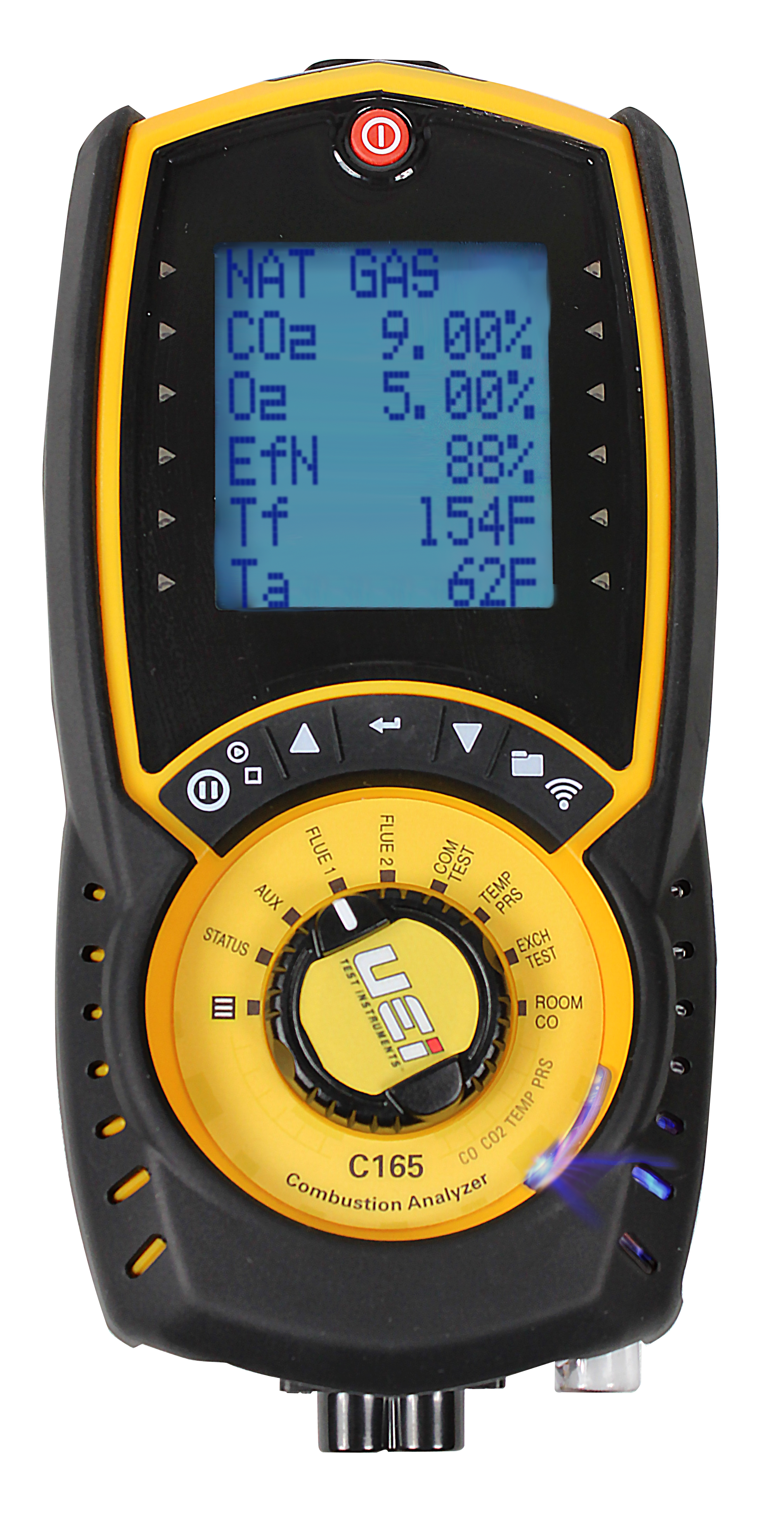

C165
Residential/Commercial Combustion Analyzer w/ Room CO
The C165 Combustion Analyzer with EOS Technology and High Altitude Compensation eliminates the number one hassle

experienced by HVAC contractors, the cost and down time of replacing the O2 sensor. The EOS technology for combustion analysis replaces the everyday electro-chemical O2 sensor with the EOS technology CO2 sensor lowering the cost of ownership and includes High Altitude Compensation

Backlight Yes
Temperature Differential Yes
Differential Pressure Yes
Worklight Yes
Temperature Inputs K-type
Protective Boot/Overmolding Yes
Sensor Technology EOS
Dual Pressure Input Yes
Preprogrammed Fuels 11
User-Defined Fuels 5
Start Time 60 second
High Altitude Compensation Yes
Memory positions 160
Magnetic Mount Yes
Warranty 1-Year limited
Recording/Data Logging Yes
K-Type Input Yes
Digital Yes
Automatic Fresh Air Purge Yes
Number of Display Parameters 6 line
IR Printer Link Yes

CO 2000 ppm
CO2 20%
O2 21%
Flue Temperature 32˚ to 1112˚F
Inlet Temperature 32˚ to 112˚F
Pressure Yes

CE Conformity Yes

Quick Start Guide Yes
Batteries Rechargeable 3 (AA)
Pouch/Case AC509
Flue Probe CP2
USB Cable Yes
Inlet Tube/Probe Connector SM11103
Charger AACA5
Optional - Replacement Accessories
JGF1
JGF1

ATT36
ATT36
K-Type 8 In Surface probe with Handle

CM11667/2
CM11667/2

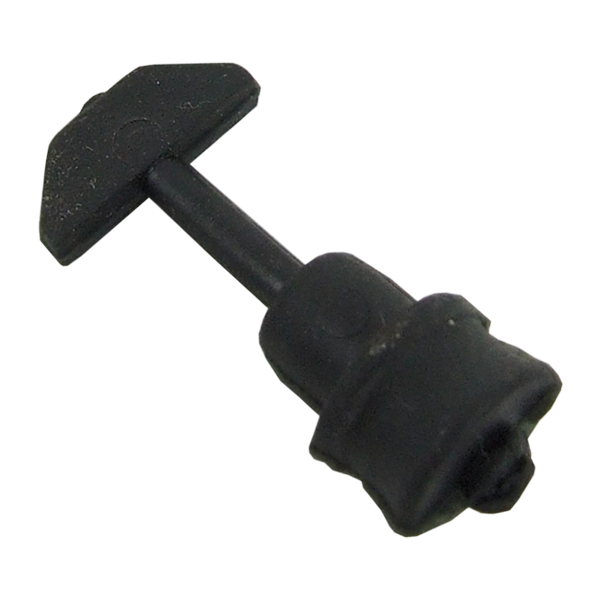

Water Trap Drain Plug (C Series Analyzers)

CM11667/2PACK
CM11667/2PACK
Water Trap Drain Plug (C Series Analyzers) (10 pack)

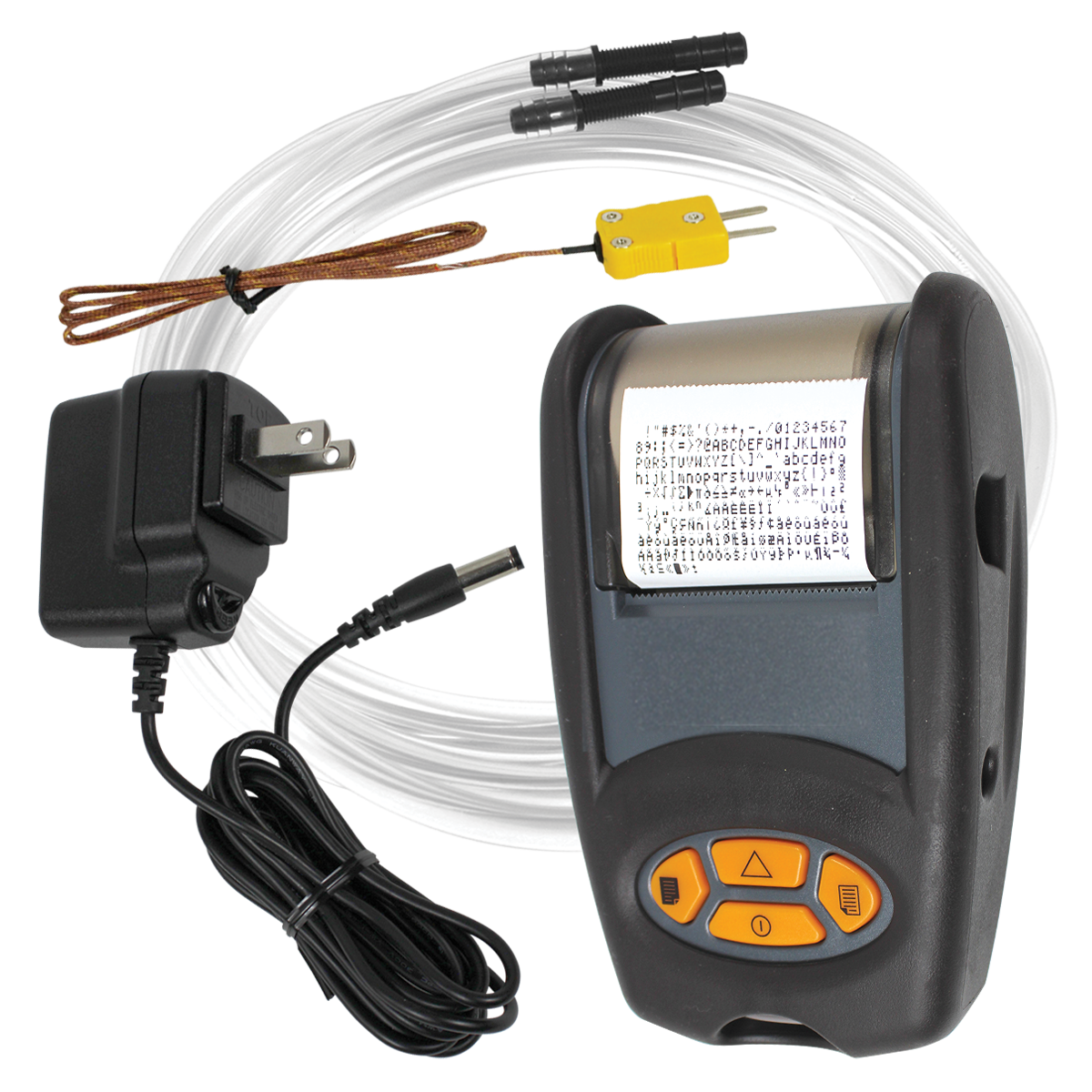

EAGLEUPGRADE
EAGLEUPGRADE
Printer, Printer Paper, AC Adapter, K-Type Thermocouples, Tubing

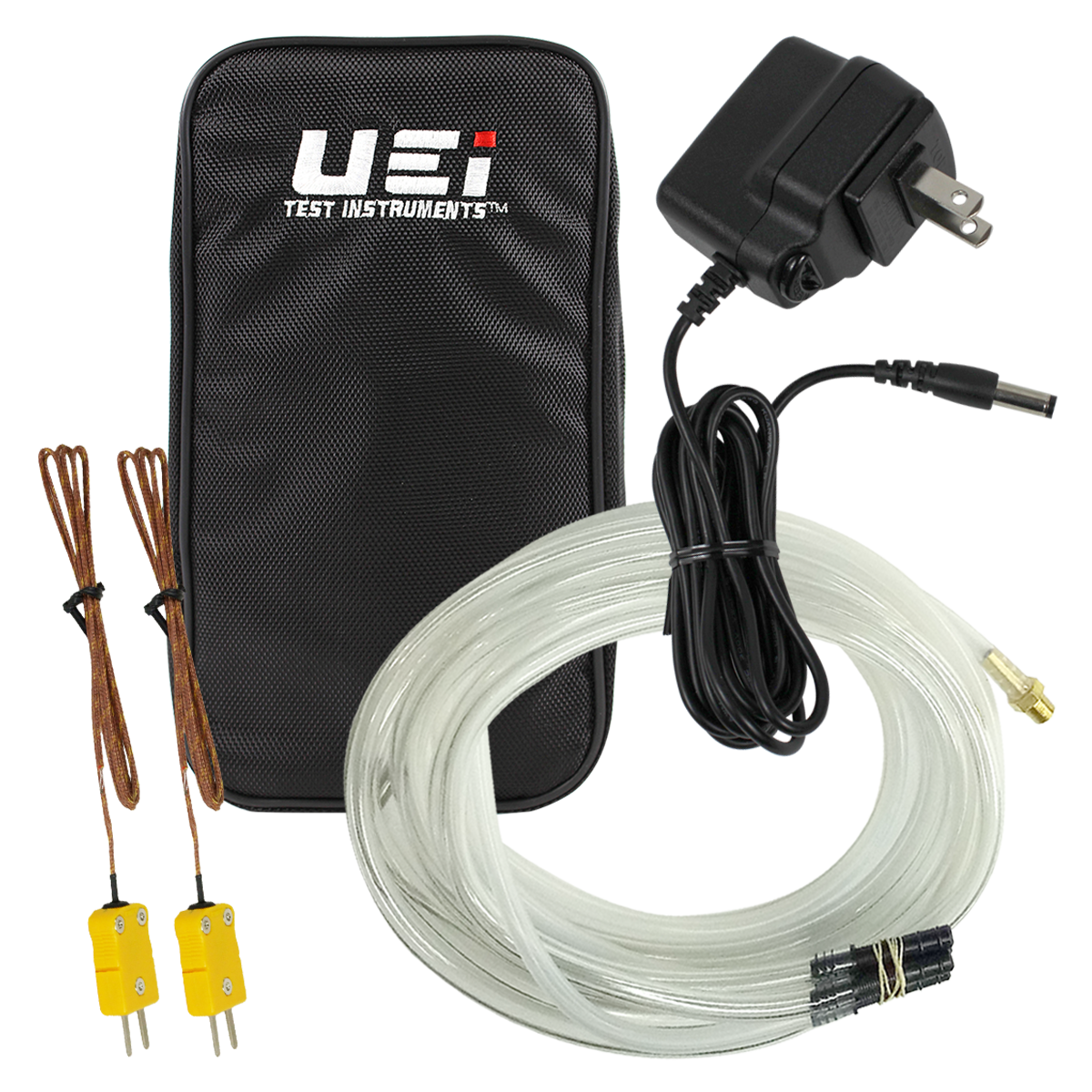

EAKIT
EAKIT
Eagle Combustion Upgrade Kit

IRP-2
IRP-2
Easy Load Fast Printer - Infrared Wireless Printer

SM11103
SM11103
Inlet Tube (legacy C Series Analyzers)

SP9
SP9
Smoke Paper and Chart

SPT1
SPT1
Smoke Pump Test Kit
Works with combustion analyzers

TDP
TDP
True Draft Probe

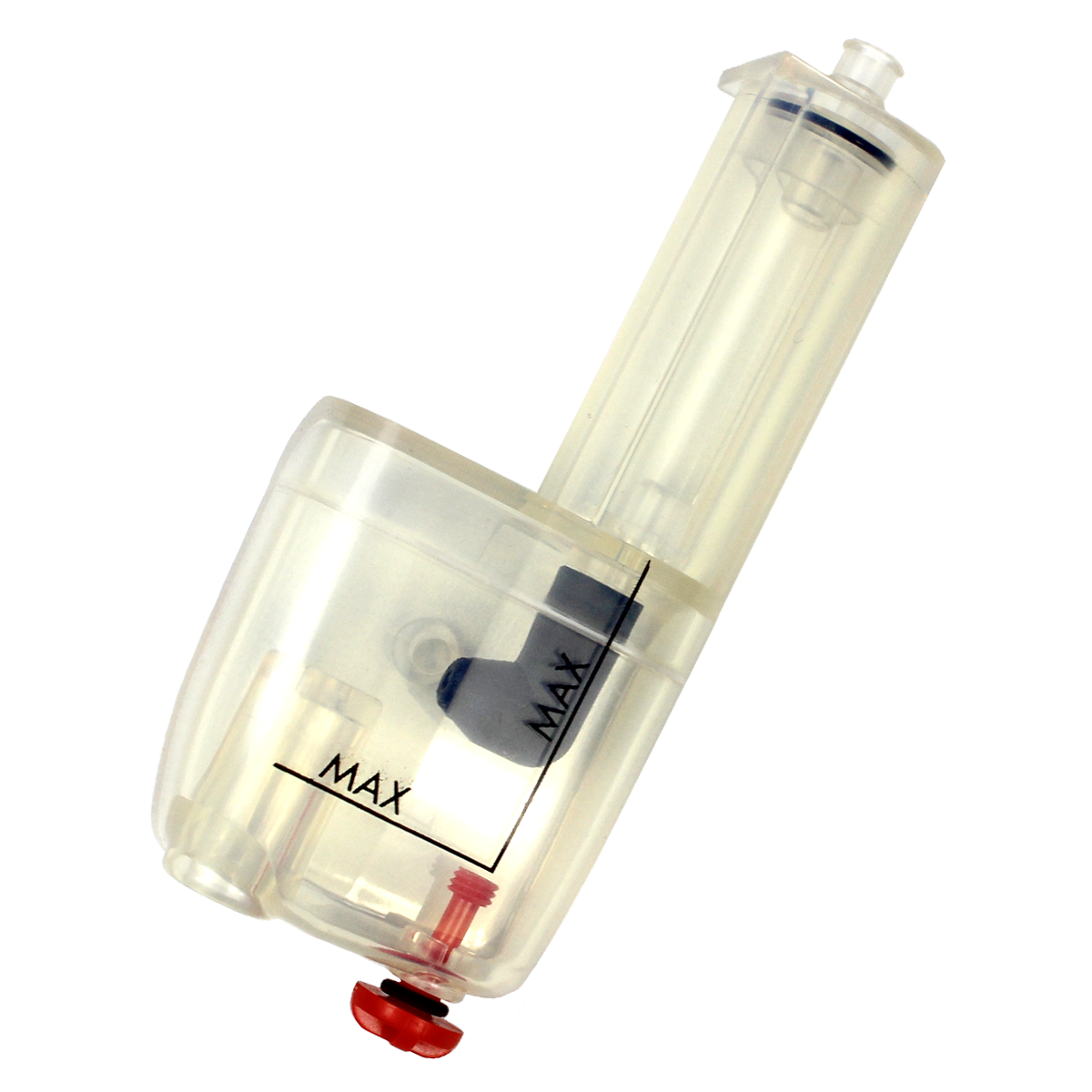

WTA
WTA
Water Trap Assembly (except C20/ C30)

ATT26
ATT26
Temperature Probe, J-Type Liquid 8 In

ATT27
ATT27
Temperature Probe, J-Type Bead

ATT30
ATT30
Temperature Probe, J-Type Liquid 8 In w/ Handle

ATTPC4
ATTPC4
Compact Pipe Clamp Probe, K-Type

ATTEXT
ATTEXT
K-Type Thermocouple 10 ft. Extension Wire

ATTPC3
ATTPC3
Pipe Clamp Probe, K-Type

ATT100
ATT100
Temperature Probe, K-Type Liquid 6 In

ATT70
ATT70
Temperature Probe Adapter, K-Type

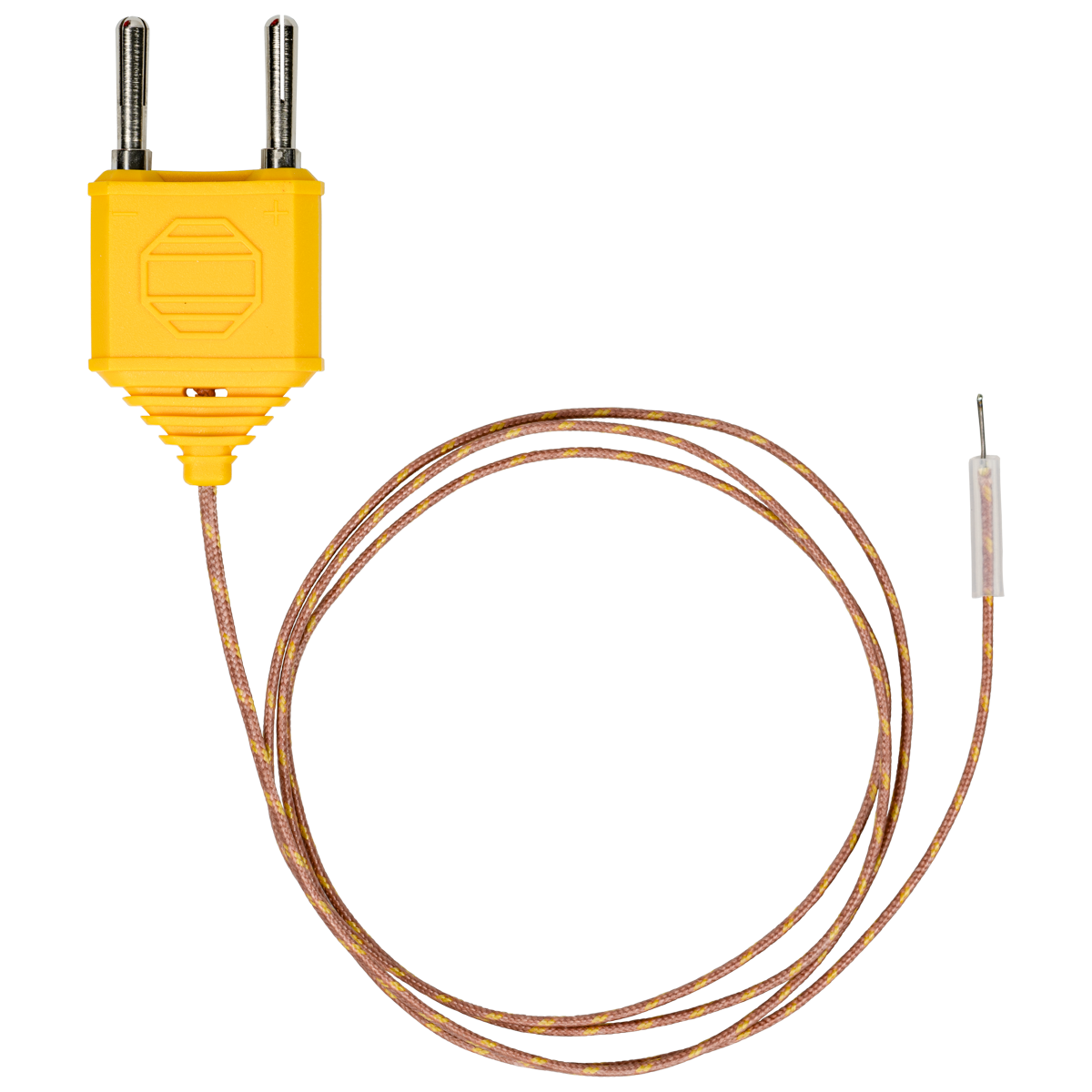

ATT71
ATT71
Thermocouple w/ Standard Inputs, K-Type

ATT39
ATT39
Temperature Probe, K-Type DT300 Series Probe

ATT29A
ATT29A
Temperature Probe, K-Type Standard (Fluoroplastic Coated)

ATT29APACK
ATT29APACK
Temperature Probe, K-Type Standard (Fluoroplastic coated) (10 pack)

ATT29
ATT29
Temperature Probe, K-Type Standard (Fiberglass coated)
