UEi C163 Combustion Analyzer with Pressure Readings
Home> Products> Combustion Analyzers> Residential/Commercial> Residential/Commercial Combustion Analyzer w/ Pressure

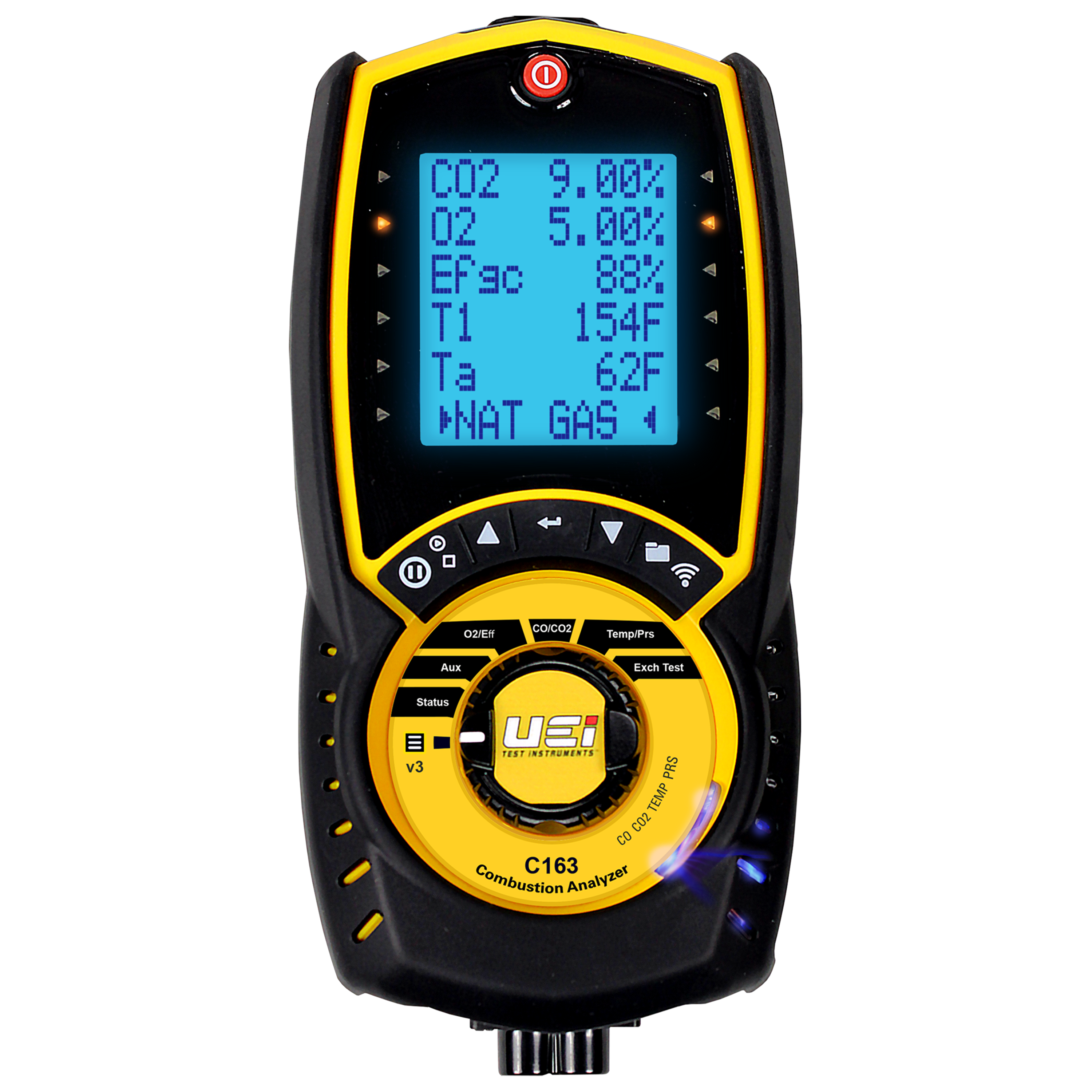

Residential/Commercial Combustion Analyzer w/ Pressure
C163

Backed by UEi Service+ to give up to 10 years of warranty, SAME DAY GUARANTEED recertification, and a reduced cost of ownership.

See the complete UEi Service+ details here

The C163 Residential/Commercial Combustion Analyzer is easy to use and features differential pressure testing, purge pump protection for the CO sensor, wireless printing via the optional printer and free Kane Wireless Printer App, as well as our combustion line standard features.

This analyzer calculates essential information for installing and maintaining gas appliances.

Includes: Analyzer, 2 Thermocouples, and Carrying Case

The C163 is also available as:

C163KIT: Analyzer, 2 Thermocouples, Printer, and Carrying Case





Backlight Yes
Up to 10-Year Warranty with Annual Recertification Yes
Eligible for UEi Service+ Yes
Temperature Differential Yes
Differential Pressure Yes
3 Types of Sensor Protection Yes
NOx Filtered CO Sensor Yes
Low Flow Detection Yes
Over Range Protection Pump Yes
Temperature Inputs K-Type
Wireless Output Yes
Free App Available Yes
Protective Boot/Overmolding Yes
Dual Pressure Input Yes
Preprogrammed Fuels 8
Start Time 60 second
High Altitude Compensation Yes
Memory positions 30
Magnetic Mount Yes
Warranty 10-Year limited
Recording/Data Logging Yes
K-Type Input Yes
Digital Yes
Automatic Fresh Air Purge Yes
Number of Display Parameters 6 line
IR Printer Link Yes
Protective Water Trap Yes

CO 2000 ppm
CO2 20%
O2 21%
Draft Yes
Flue Temperature 32-1112 °F
Inlet Temperature 32-1112 °F
Heat Exchanger Test (HET) Yes
Differential Temperature Yes
K-Type Temperature Range -40-950 °F (-40-510 °C)
Pressure Yes

CE Conformity Yes
RoHS EC62321-2:2013, IEC62321-1:2013, IEC62321-3-1:2013, IEC62321-5:2013, IEC62321-4:2013, IEC62321-7-2:2017, IEC62321-7-1:2015, IEC62321-6:2015
REACH Compliant Yes
AHRI 1260 Standard Yes
Certification The C163 is independently tested and certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control Ordinance (BlmSchV)
EMC EN50270:2015
Safety EN61010-1:2010

Quick Start Guide Yes
Batteries Rechargeable AA (3)
Temperature Probe ATT29 (2)
Pouch/Case AC509
Flue Probe CP2
USB Cable AACA5
Particle Filter 17631
11000 Tubing Yes

Video 1
Video 2
Video 3
Video 4
Optional - Replacement Accessories
AC509
AC509

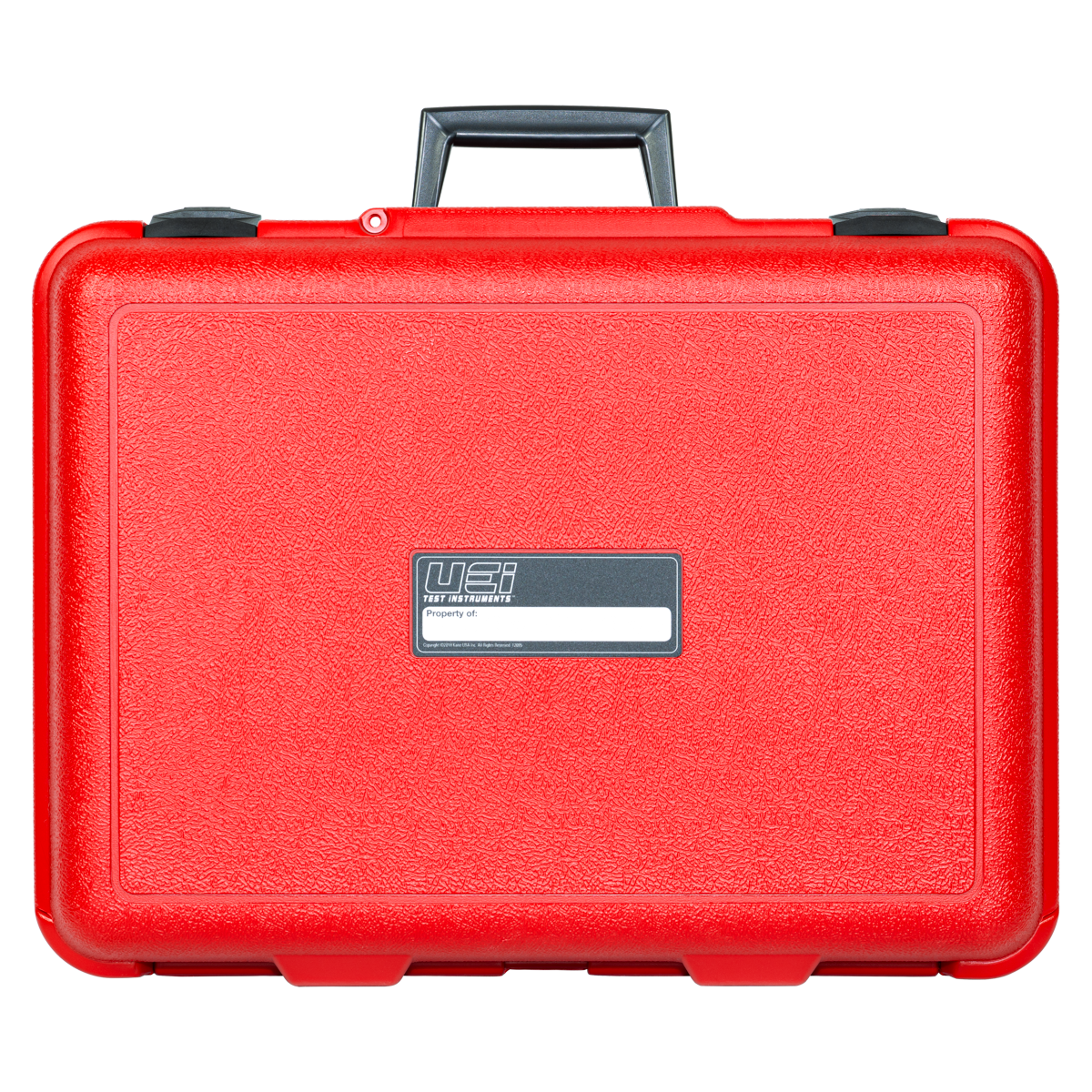

C Series Carrying Case (14 x 19 x 4.75)

IRP-2
IRP-2

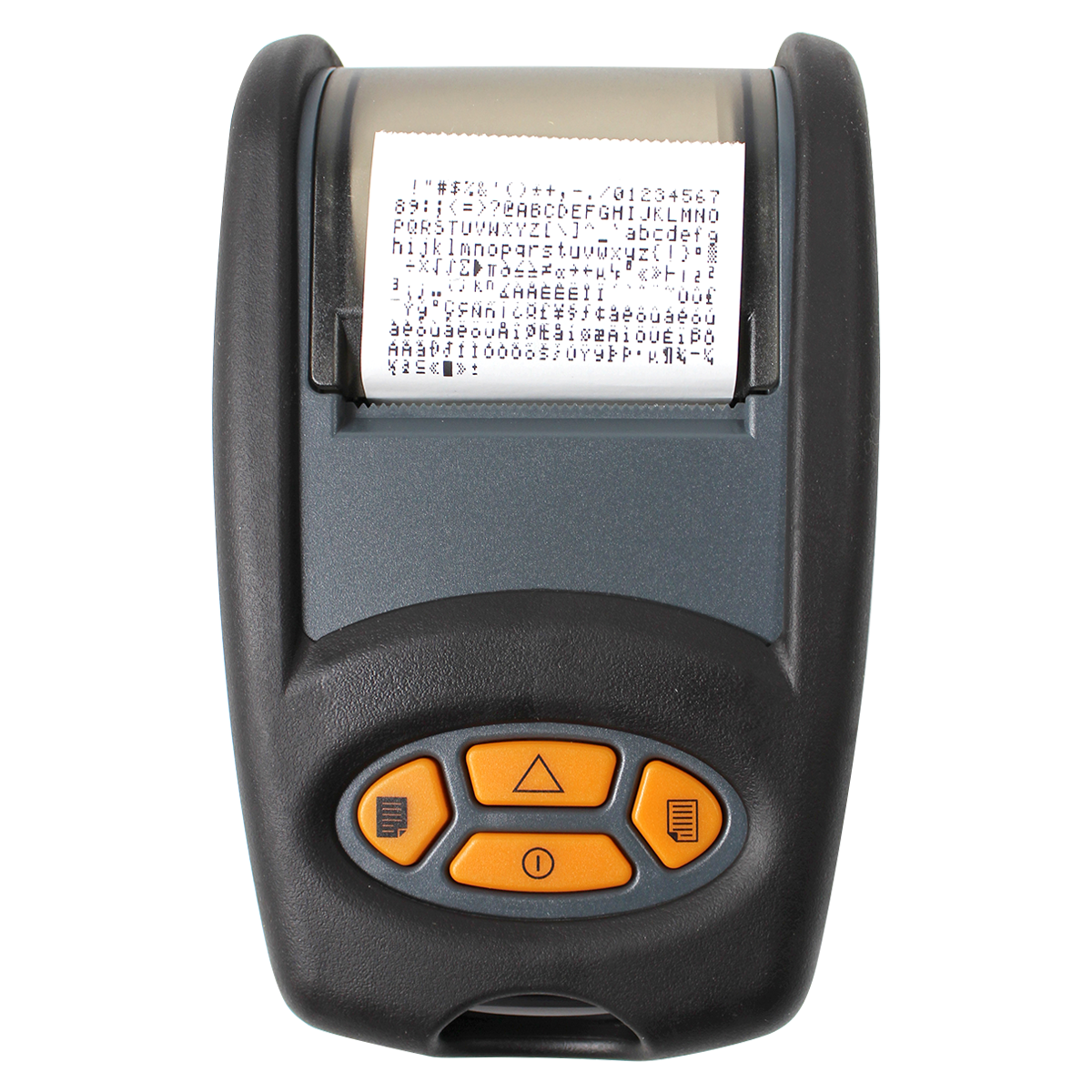

Easy Load Fast Printer - Infrared Wireless Printer

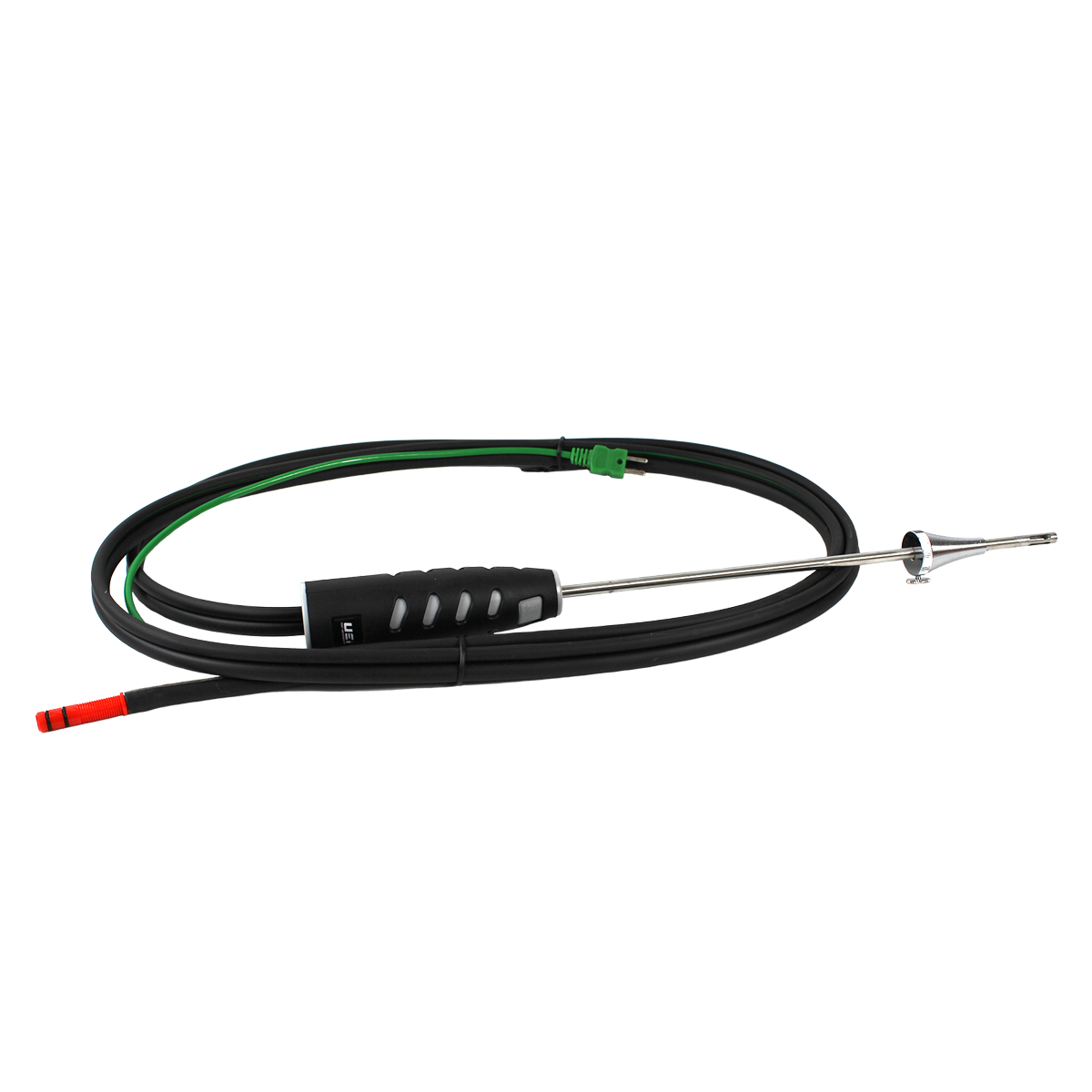

CP2
CP2
Flue Probe

TDP
TDP

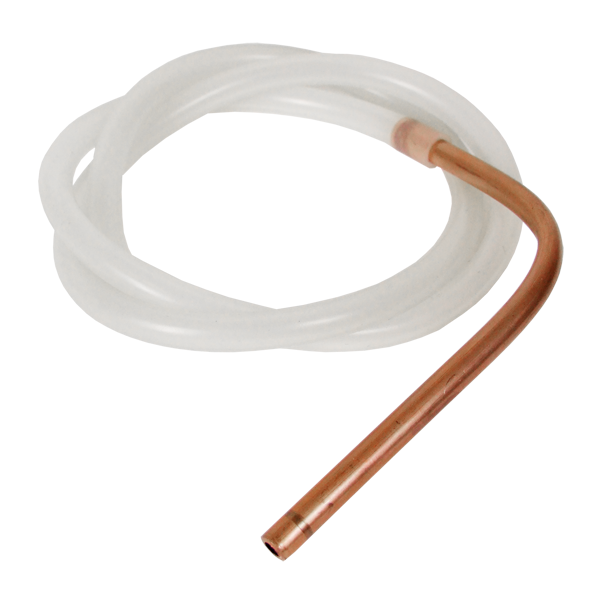

True Draft Probe

SPAK1
SPAK1

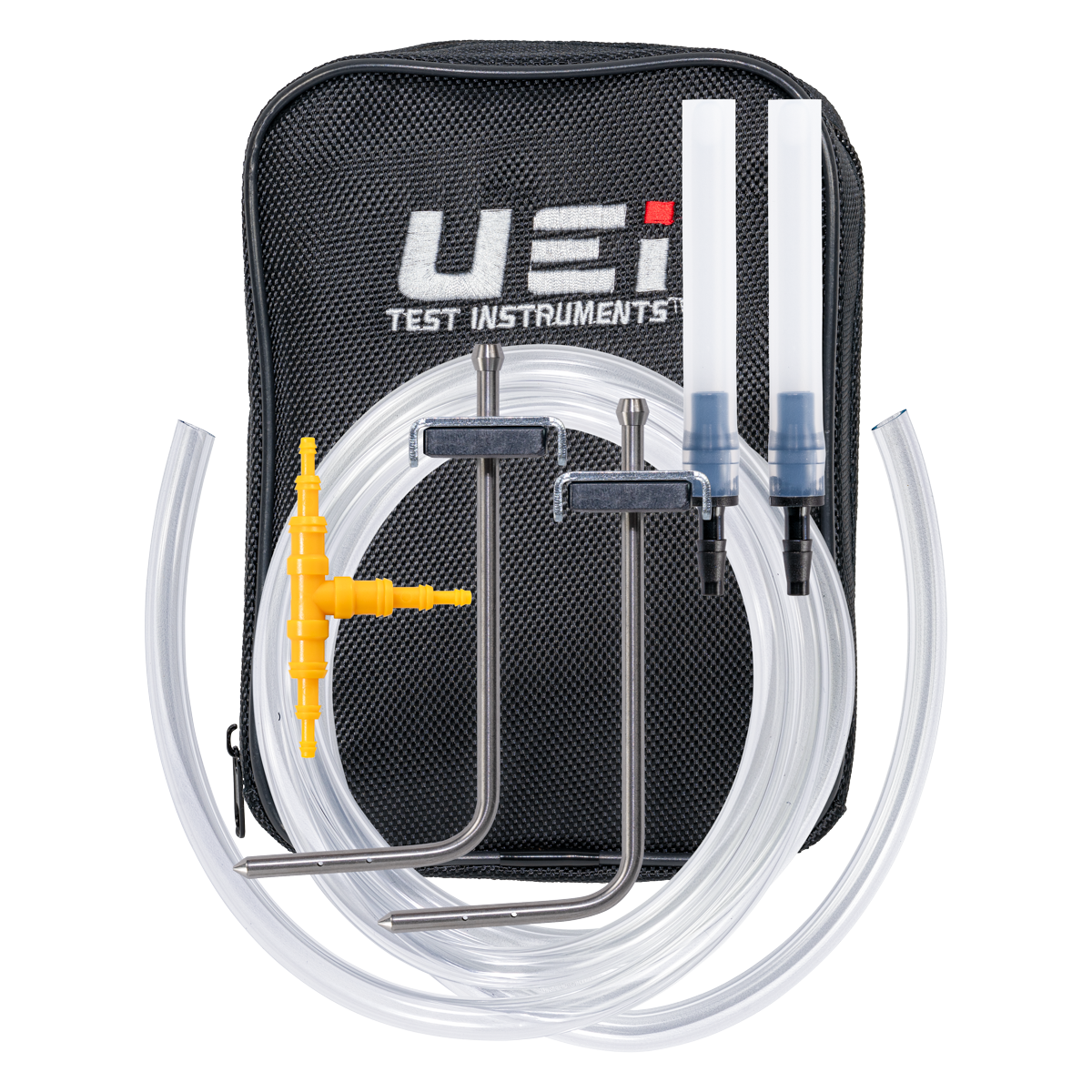

Static Pressure Accessory Kit

ATTPC4
ATTPC4
Compact Pipe Clamp Probe, K-Type

ATT29
ATT29
Temperature Probe, K-Type Standard (Fiberglass coated)

SM50515
SM50515

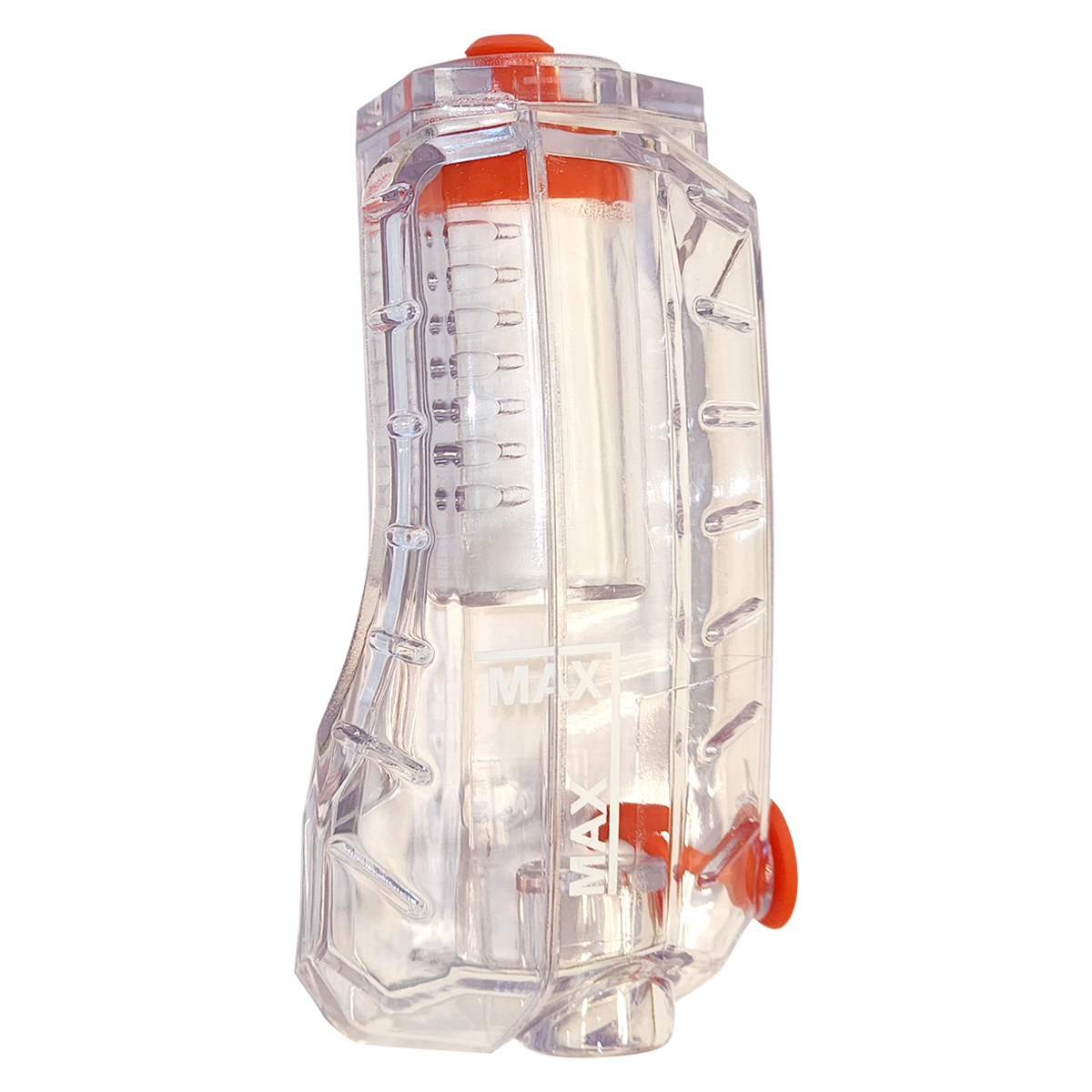

Water Trap

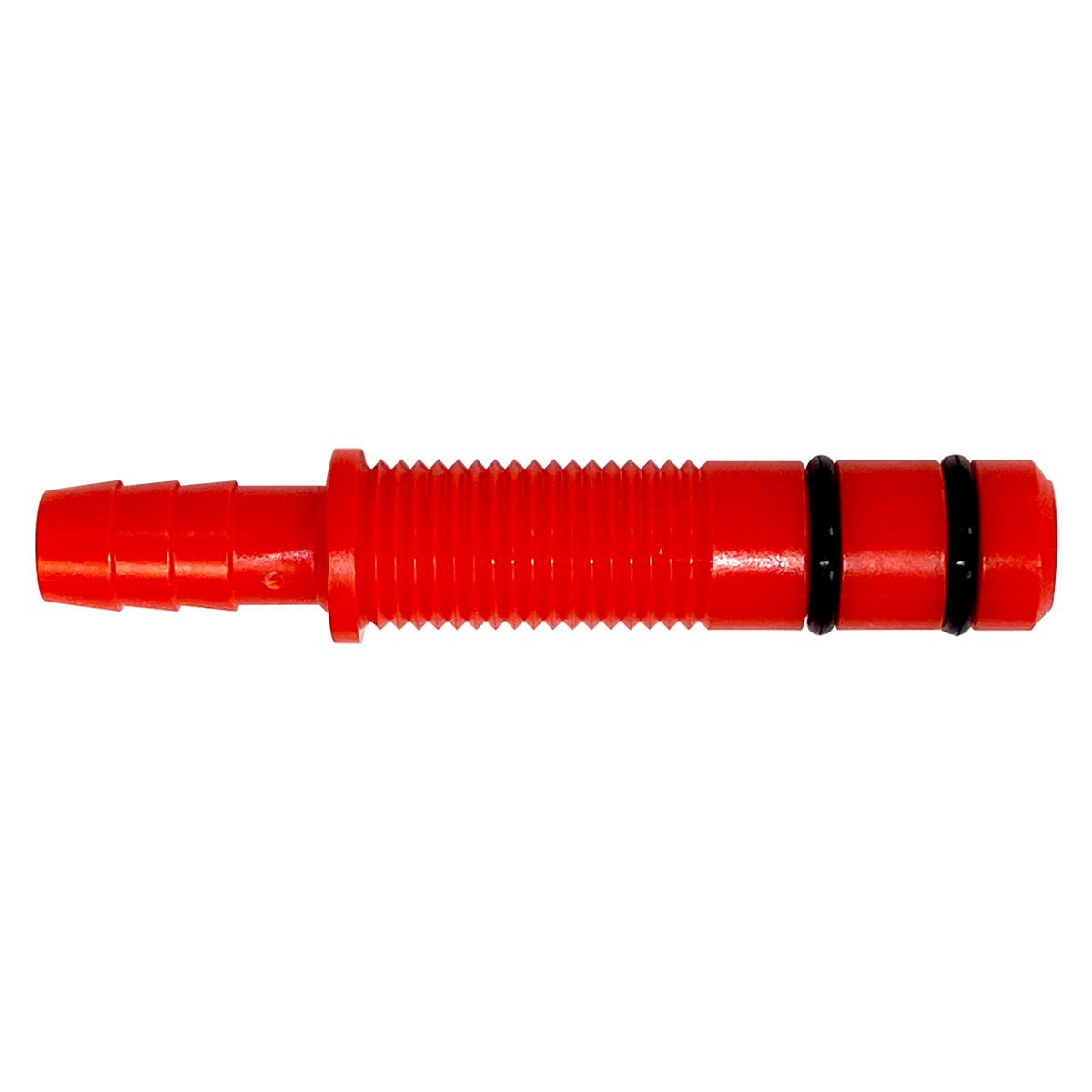

SM11105
SM11105
Inlet tube

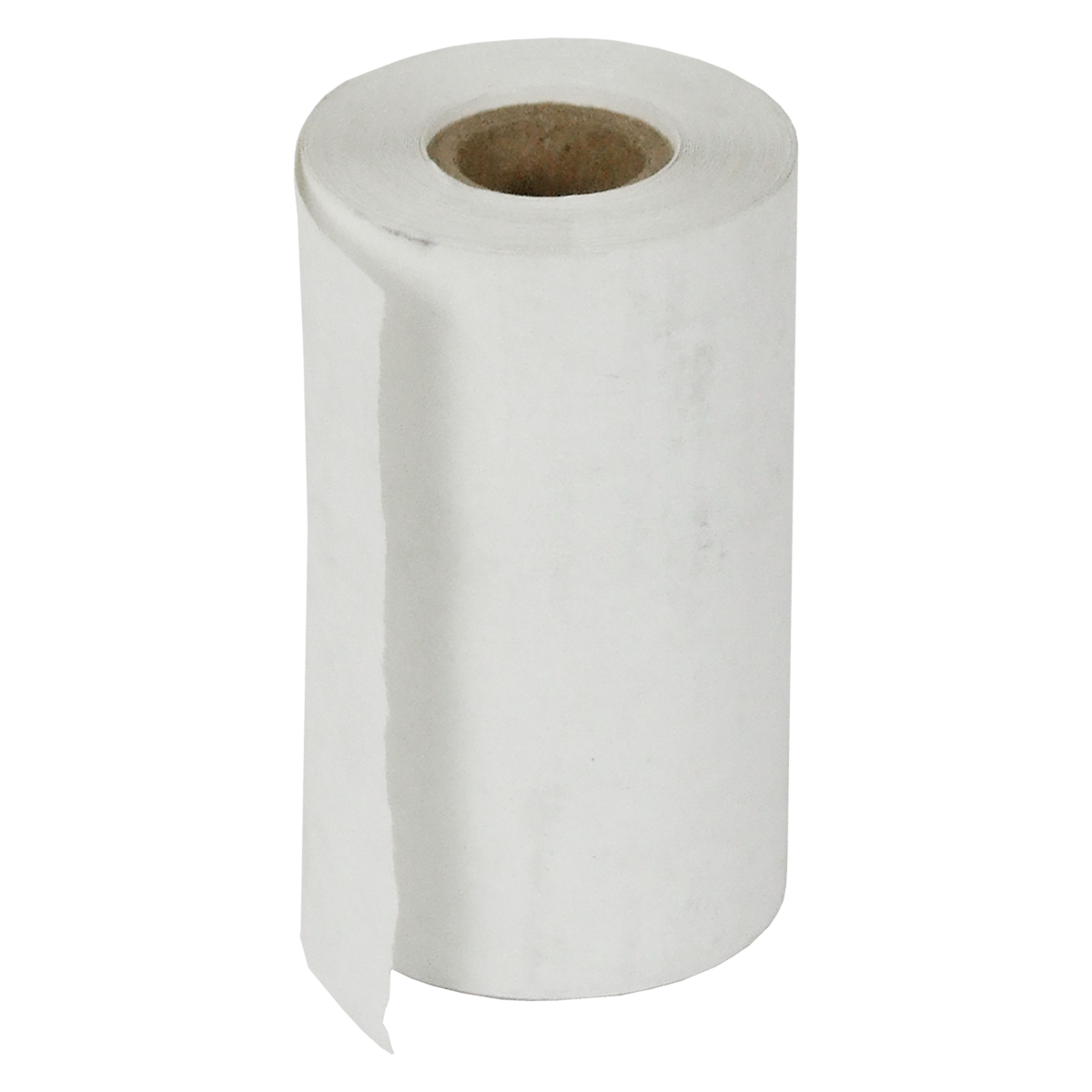

16646
16646
Thermal Paper for IRP-2 (2.25 inch/ 57mm)

16646PACK
16646PACK

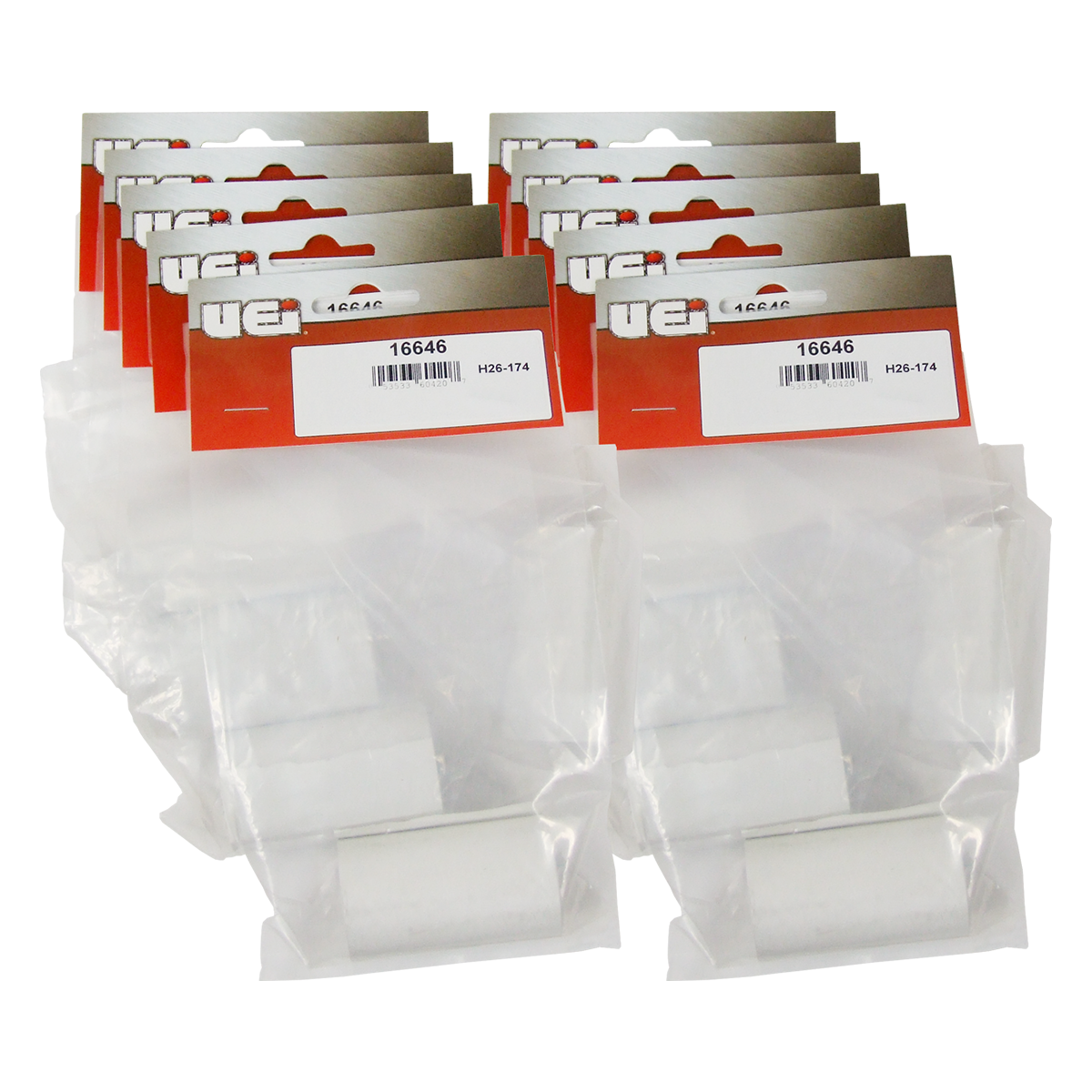

10 Pack of Thermal Paper for IRP-2 (2.25 inch/ 57mm)

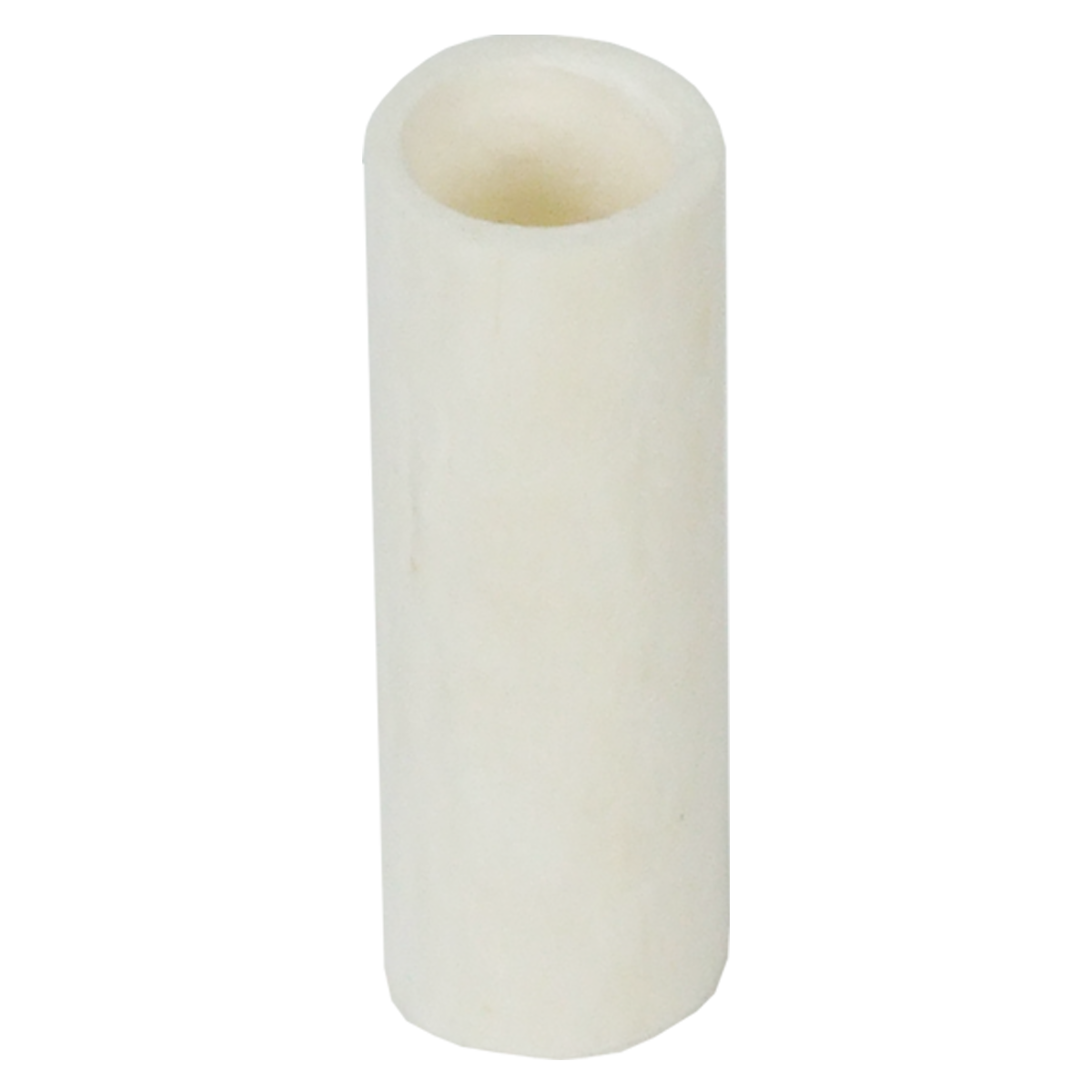

17631
17631
Particle Filter (C Series Analyzers)

17631PACK
17631PACK

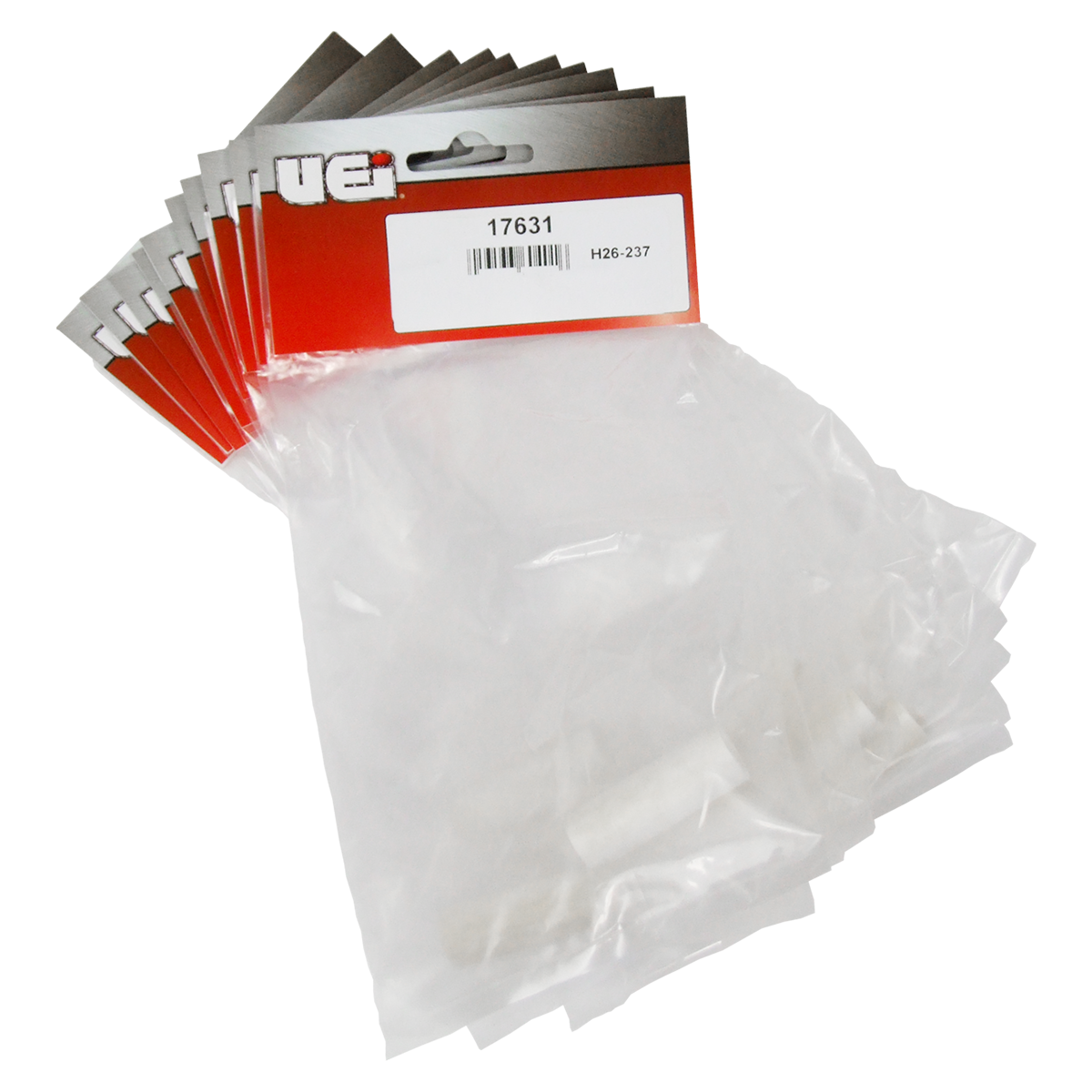

Particle Filter (C Series Analyzers)

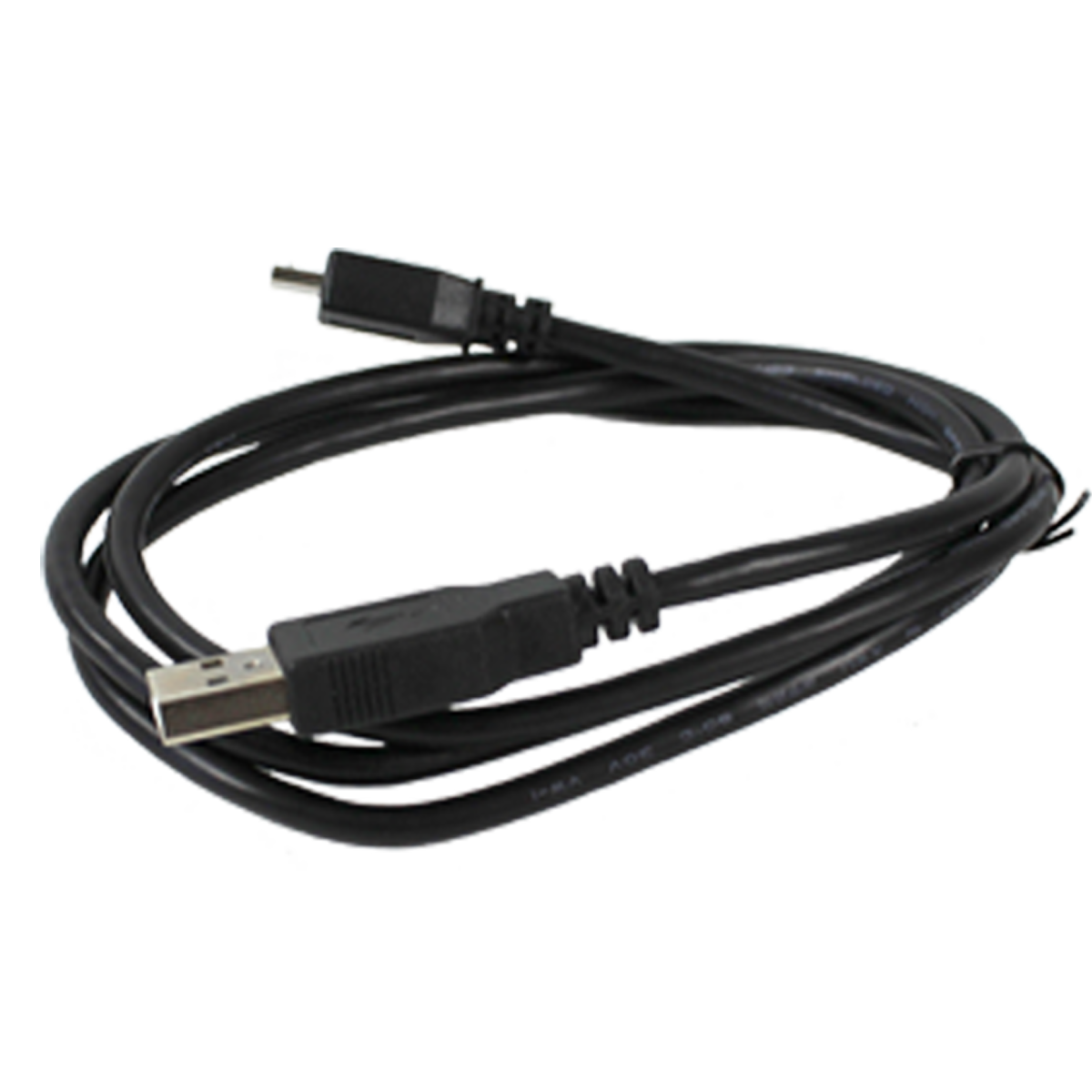

AACA5
AACA5
USB CHARGER FOR C160 SERIES ANALYZERS
