C162 - Residential Combustion Analyzer w/ Printer Kit | Kane USA
Home> Services> *UPGRADED TO C161KIT*
*UPGRADED TO C161KIT*

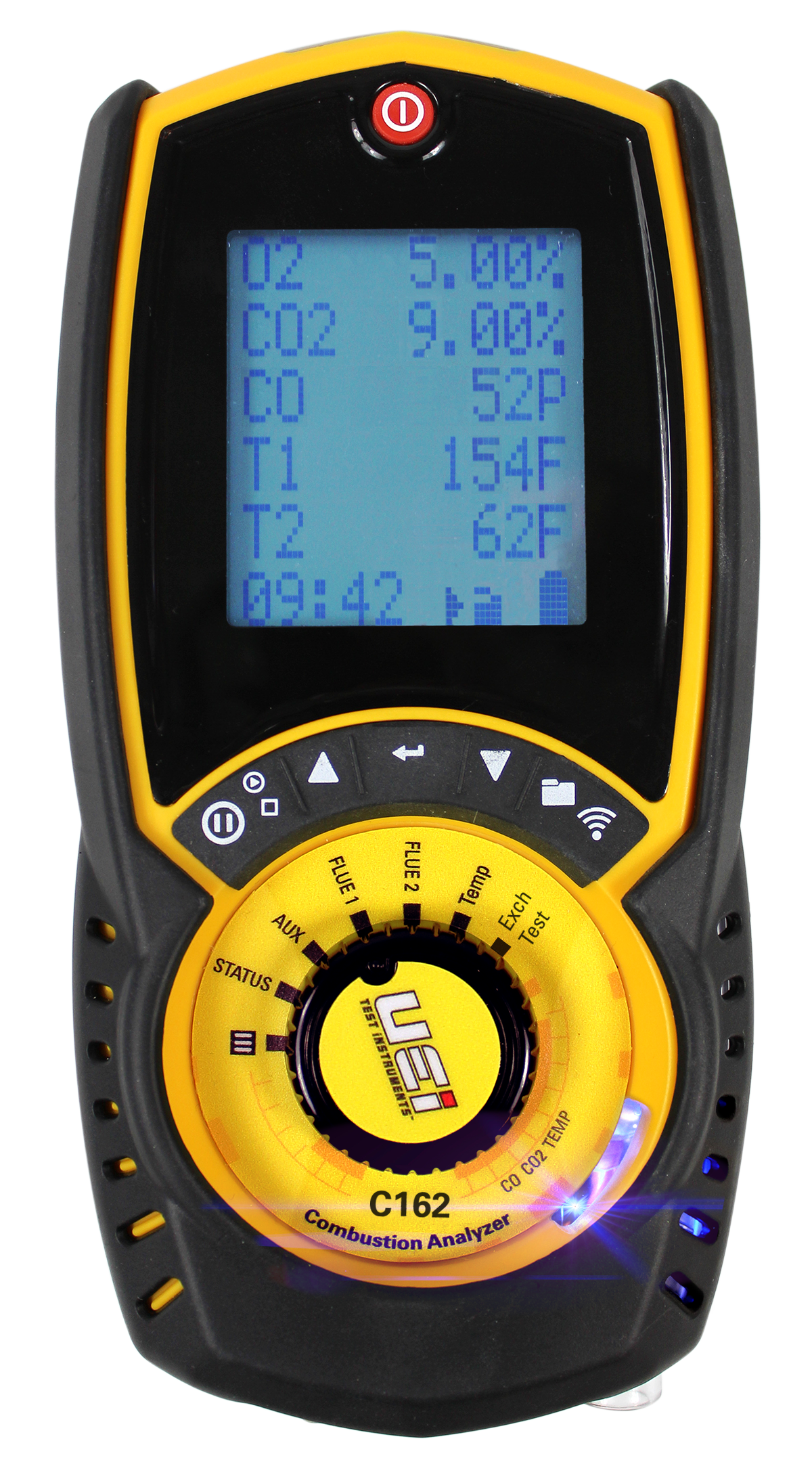

C162
Residential Combustion Analyzer w/ Heat Exchanger Test
The C162, with EOS Technology, eliminates the number one hassle experienced by HVAC technicians, the cost and down time of replacing the O2 sensor. The EOS award-winning technology for combustion analysis replaces the everyday electro-optical sensor with EOS CO2 technology, lowering the cost of ownership. The C162 offers direct CO2 measurement and features a 30 second start up time.

Backlight Yes
Temperature Differential Yes
NOx Filtered CO Sensor Yes
Worklight Yes
Temperature Inputs K-Type
Free App Available Yes
Protective Boot/Overmolding Yes
Sensor Technology EOS
Preprogrammed Fuels 8
Start Time 60 second
High Altitude Compensation Yes
Memory positions 30
Selectable Units Yes
Magnetic Mount Yes
Warranty 1-Year limited
Recording/Data Logging Yes
Temperature Probe K-Type
K-Type Input Yes
Real-Time Clock Yes
Digital Yes
Automatic Fresh Air Purge Yes
Number of Display Parameters 6 line
IR Printer Link Yes

CO 2000 ppm
CO2 20%
O2 21%
Draft Yes
Flue Temperature 32˚ to 1112˚F (0˚ to 600˚C)
Inlet Temperature 32˚ to 1112˚F (0˚ to 600˚C)
Heat Exchanger Test (HET) Yes
Differential Temperature Yes
K-Type Temperature Range -40˚ to 950˚F (-40˚ to 510˚C)

CE Conformity Yes
RoHS Yes
REACH Compliant Yes
AHRI 1260 Standard Yes

Quick Start Guide Yes
Batteries Rechargeable 3 (AA)
Pouch/Case A509
Infrared Printer IRP-2
Flue Probe CP2
Printer Paper Roll Yes
USB Cable Yes
Inlet Tube/Probe Connector 11000
Particle Filter 17631
Charger WIR00067
K-Type Thermocouples ATT29 (2)
Optional - Replacement Accessories
CP2
IRP-2
SM11105
SM11105

SPAK1
SPT1
SPT1
Works with combustion analyzers

TDP
ATTPC4
ATTPC3
ATT100
ATTEXT
ATT36
ATT39
ATT29
ATT29A
ATT29APACK
